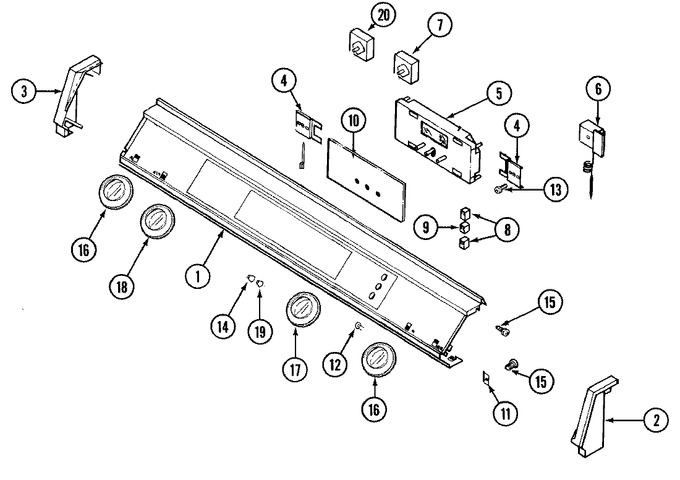

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100162		Panel, Control	11	Appelez-nous	-
2	Y702387		Cap, End (rt)	11	Appelez-nous	-
3	702388		Cap, End (lt)	11	Appelez-nous	-
4	703667		Bracket, Clock	11	Appelez-nous	-
5	Y04100133		Clock	11	Appelez-nous	-
5	Y703708		Clock	11	Appelez-nous	-
6	Y703674		Thermostat	11			$ 133.57
7	WPW10339879		Tie, Cable   (Replaces: 701678)	11			$ 7.11
7	Y703673		Switch, Selector	11	Appelez-nous	-
8	Y704222		Light, Oven Pilot (240v)	11	Appelez-nous	-
9	Y702614		Light, Surface Indicator 120v	11	Appelez-nous	-
10	704608		Lens, Timer (wht)	11			$ 209.07
11	702616		Bracket, Retaining	11	Appelez-nous	-
12	Y705024		Lens, Pilot Light	11	Appelez-nous	-
13	71002058		Screw   (Replaces: Y702124)	11			$ 5.82
14	WP7711P492-60		Knob, Clock (lg-gry) ??   (Replaces: Y704485)	11			$ 12.13
15	703749		Wire, Orange	11	Appelez-nous	-
15	703752		Wire, Resistor Therm.	11	Appelez-nous	-
15	Y705393		Screw, Hex	11	Appelez-nous	-
15	704243		Wire, Brown	11	Appelez-nous	-
15	704244		Wire, Blue	11	Appelez-nous	-
16	04100163		Knob, Valve	11	Appelez-nous	-
17	Y704482		Knob, Thermostat (wht)	11	Appelez-nous	-
18	704483		Knob, Select Switch (gry)-na	11			$ 7.87
19	RA196UA		Manual, Use & Care	11	Appelez-nous	-
19	12001809		Lp Conversion Kit   (Replaces: 71001160)	11			$ 50.27
19	WP7711P492-60		Knob, Clock (sm-gry)   (Replaces: Y704484)	11			$ 12.13
20	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
