SELECT A DIAGRAM

01 - Base, Tub Braces, Damper Assy. & Trans.


02 - Blower Housing/thermostats & Lint Screen


03 - Cabinet & Front Panel


04 - Cabinet, Relays & Dryer Stand

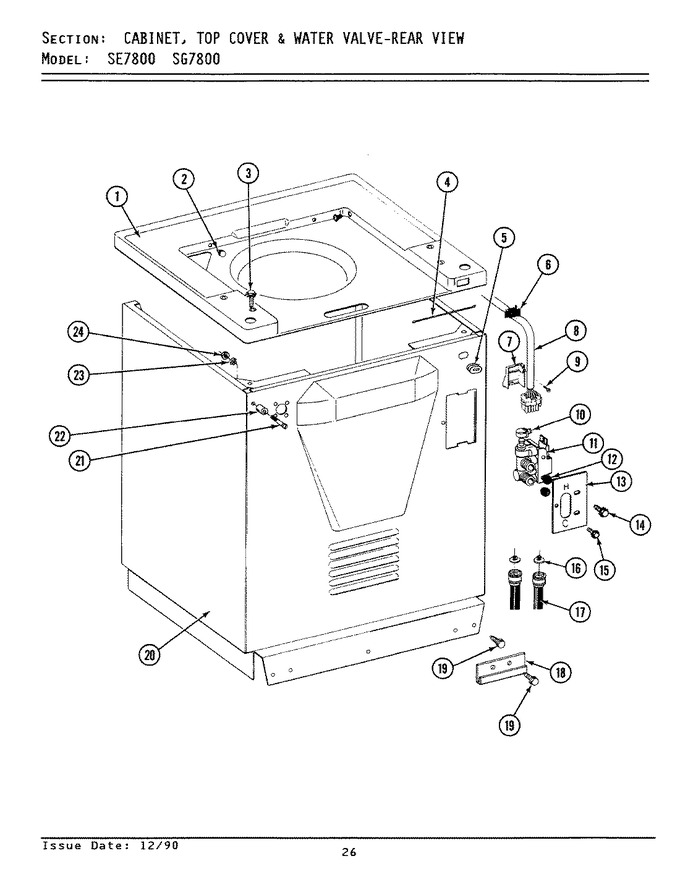

05 - Cabinet, Top Cover & Water Valve (rear)


06 - Clutch, Brake & Belts


07 - Door Assembly


08 - Front Panel & Control Panel


09 - Front View


10 - Inlet Duct, Gas Valve & Ext. (sg7800)


11 - Inner/outer Tub,agitator & Wtr Levl Swth


12 - Motor & Idler Assembly


13 - Motor & Pump Assembly


14 - Top Cover, Lid & Lid Lock Assembly


15 - Transmission-orbital


16 - Tub Cover, Water Valve & Water Inj. Assy


17 - Tumbler (front & Back)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	207579		Top Cover (white)	00	Appelez-nous	-
2	215247		Bumper For Lid	00	Appelez-nous	-
3	22001402		Screw	00	Appelez-nous	-
4	215274		Top Cover Restraint	00	Appelez-nous	-
5	215950		Plug, Hole	00	Appelez-nous	-
6	215948		Grommet	00	Appelez-nous	-
7	215960		Strain Relief	00	Appelez-nous	-
7	Y216003		Stain Relief W/extension	01	Appelez-nous	-
8	207784		Wire Harness	00	Appelez-nous	-
9	215953		Screw	00	Appelez-nous	-
10	WP596669		Hose Clamp   (Replaces: 201575)	00		Immediately	$ 7.56
11	205613		Water Valve	00		Immediately	$ 103.57
12	WP96160		Screen, Valve   (Replaces: 214337)	00			$ 10.54
13	215264		Bracket For Water Valve	00	Appelez-nous	-
14	Y313561		Screw----na	00			$ 5.27
15	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
16	200961		Screen Washer, Inlet Hose	00	Appelez-nous	-
17	WP76314		Inlet Hose Assy.   (Replaces: 200672)	00			$ 38.79
18	215278		Glide For Washer	00	Appelez-nous	-
19	WPW10346892		Screw   (Replaces: 213121)	00		Immediately	$ 6.47
20	207207		Cabinet Wht	00	Appelez-nous	-
21	WP67006908		Screw   (Replaces: 215277)	00		Immediately	$ 7.16
22	215276		Bushing	00	Appelez-nous	-
23	310557		Washer	00	Appelez-nous	-
24	WP486255		Hex. Nut, No.8-32   (Replaces: Y052659)	00			$ 5.54

    View Diagram in Separate Window       Print Part List
