SELECT A DIAGRAM

01 - Base, Tub Braces, Damper Assy. & Trans.


02 - Blower Housing/thermostats & Lint Screen


03 - Cabinet & Front Panel


04 - Cabinet, Relays & Dryer Stand


05 - Cabinet, Top Cover & Water Valve (rear)


06 - Clutch, Brake & Belts


07 - Door Assembly


08 - Front Panel & Control Panel


09 - Front View


10 - Inlet Duct, Gas Valve & Ext. (sg7800)


11 - Inner/outer Tub,agitator & Wtr Levl Swth


12 - Motor & Idler Assembly


13 - Motor & Pump Assembly


14 - Top Cover, Lid & Lid Lock Assembly


15 - Transmission-orbital


16 - Tub Cover, Water Valve & Water Inj. Assy


17 - Tumbler (front & Back)

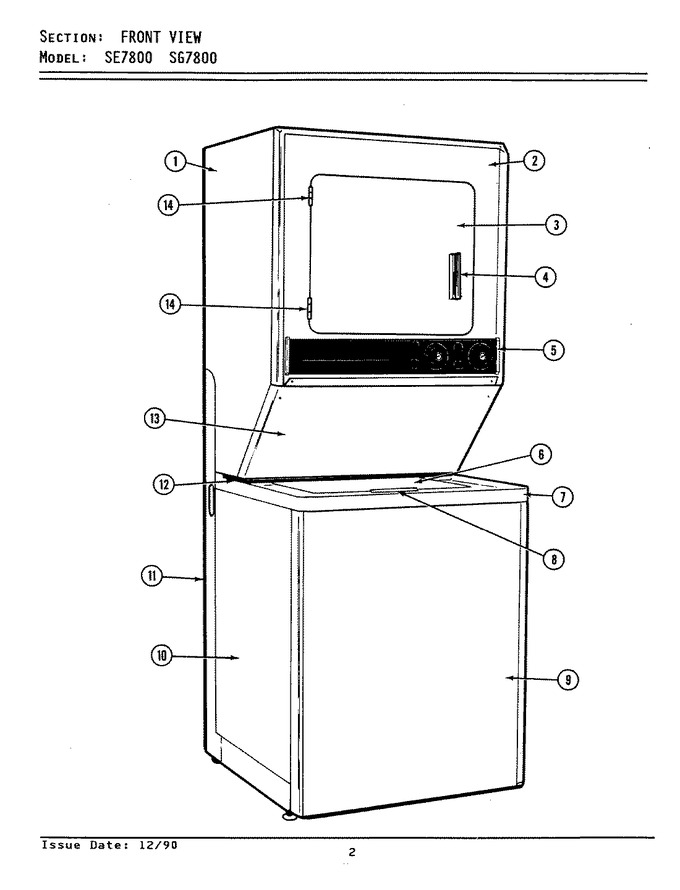

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	308055		Cabinet (wht)	00	Appelez-nous	-
2	315261		Front Panel (white)	00	Appelez-nous	-
3	314475		Panel, Outer Door (wht)	00	Appelez-nous	-
4	314476		Handle,door	00	Appelez-nous	-
5	308038		Control Panel	00	Appelez-nous	-
6	215251		Lid-white	00	Appelez-nous	-
7	207579		Top Cover (white)	00	Appelez-nous	-
8	206667		Handle With Nuts	00	Appelez-nous	-
9	207205		Panel, Front (wht)	00	Appelez-nous	-
10	207207		Cabinet Wht	00	Appelez-nous	-
11	Y306110		Stand, Dryer (complete) (wht)	00	Appelez-nous	-
12	215245		Bridge For Top Cover Na	00	Appelez-nous	-
13	306072		Access Panel-white	00	Appelez-nous	-
14	Y304577		Door Hinge	00	Appelez-nous	-
