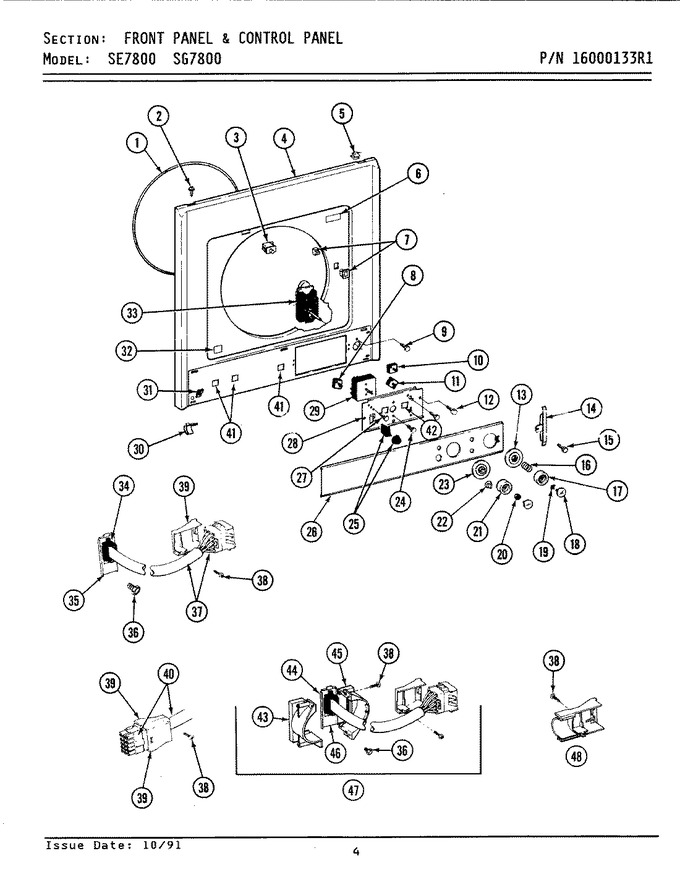

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
314286 |
 |
Seal For Front Panel |
00 |
|
|
$ 90.56 |
|
|
| 2 |
WP1163283 |
|
Screw, No.8 X 1/2 Inch (Replaces: 212277) |
00 |
|
|
$ 6.47 |
|
|
| 3 |
W10169313 |
 |
Switch, Door (Replaces: Y305753) |
00 |
|
Immediately |
$ 29.18 |
|
|
| 4 |
315261 |
|
Front Panel (white) |
00 |
Appelez-nous
|
- |
|
|
|
| 5 |
Y310376 |
|
Clip, Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
Y313927 |
|
Instruction Label |
00 |
Appelez-nous
|
- |
|
|
|
| 7 |
306436 |
 |
Door Latch Kit |
00 |
|
Immediately |
$ 10.17 |
|
|
| 8 |
308017 |
|
Switch, Dryer Temperature |
00 |
Appelez-nous
|
- |
|
|
|
| 9 |
WP3400014 |
|
Screw-timer To Control Pane (Replaces: 213966) |
00 |
|
|
$ 6.98 |
|
|
| 10 |
207782 |
|
Switch, Water Temperature |
00 |
Appelez-nous
|
- |
|
|
|
| 11 |
207800 |
|
Switch, Water Level |
00 |
Appelez-nous
|
- |
|
|
|
| 12 |
WP90767 |
 |
Screw (Replaces: 211294) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 13 |
207794 |
|
Timer Dial - Washer |
00 |
Appelez-nous
|
- |
|
|
|
| 14 |
315267 |
|
End Cap,control Panel (blk) |
00 |
Appelez-nous
|
- |
|
|
|
| 15 |
WP8281227 |
 |
Screw,hex Head (brake Drum) (Replaces: 211000) |
00 |
|
|
$ 9.40 |
|
|
| 16 |
211065 |
|
Spring, Timer Knob |
00 |
|
|
$ 5.70 |
|
|
| 17 |
215828 |
 |
Knob, Timer (blk) |
00 |
|
|
$ 11.97 |
|
|
| 18 |
215821 |
|
Cap, Knob |
00 |
Appelez-nous
|
- |
|
|
|
| 19 |
211605 |
|
Retainer, Timer Knob |
00 |
Appelez-nous
|
- |
|
|
|
| 20 |
W10155650 |
 |
Nut (Replaces: 312273) |
00 |
|
|
$ 12.03 |
|
|
| 21 |
315041 |
|
Knob, Timer |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
308041 |
 |
Knob, Rotary (Replaces: 308035) |
00 |
|
Immediately |
$ 1.70 |
|
|
| 23 |
308032 |
|
Timer Dial |
00 |
Appelez-nous
|
- |
|
|
|
| 24 |
215952 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 25 |
Y308025 |
 |
Switch, Push To Start (blk) |
00 |
|
|
$ 48.47 |
|
|
| 26 |
308038 |
|
Control Panel |
00 |
Appelez-nous
|
- |
|
|
|
| 27 |
215952 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 28 |
315237 |
|
Bracket For Switches & Timer |
00 |
Appelez-nous
|
- |
|
|
|
| 29 |
Y308022 |
|
Timer |
00 |
Appelez-nous
|
- |
|
|
|
| 30 |
314482 |
|
Fastener, Spring |
00 |
Appelez-nous
|
- |
|
|
|
| 31 |
488660 |
|
Nut (Replaces: 314748) |
00 |
Appelez-nous
|
- |
|
|
|
| 32 |
314486 |
|
Label |
00 |
Appelez-nous
|
- |
|
|
|
| 33 |
207783 |
|
Timer |
00 |
|
|
$ 210.43 |
|
|
| 34 |
215948 |
|
Grommet |
00 |
Appelez-nous
|
- |
|
|
|
| 35 |
315260 |
|
Bracket For Grommet |
00 |
Appelez-nous
|
- |
|
|
|
| 36 |
WPW10139210 |
|
Screw, No.8 X 5/16 Inch (Replaces: 211168) |
00 |
|
|
$ 6.75 |
|
|
| 37 |
207791 |
|
Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 37 |
308019 |
|
Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 38 |
215953 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 39 |
215960 |
|
Strain Relief |
00 |
Appelez-nous
|
- |
|
|
|
| 40 |
207784 |
|
Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 41 |
315286 |
|
Bumper Large |
00 |
Appelez-nous
|
- |
|
|
|
| 42 |
315287 |
|
Bumper Small |
00 |
Appelez-nous
|
- |
|
|
|
| 44 |
216002 |
|
Grommet |
01 |
Appelez-nous
|
- |
|
|
|
| 46 |
216008 |
|
Bracket Gromment |
01 |
Appelez-nous
|
- |
|
|
|
