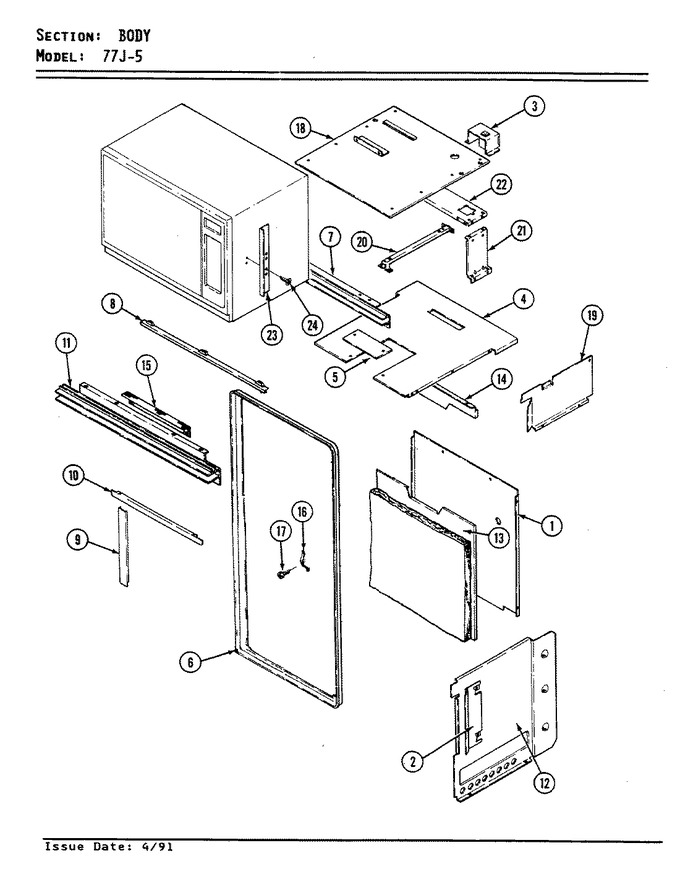

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F121-51		Back, Main	01	Appelez-nous	-
2	3601F130-51		Baffle, Side	01	Appelez-nous	-
3	4005F001-80		Cover, Lighter	01	Appelez-nous	-
4	4005F202-51		Cover, Box	01	Appelez-nous	-
5	4005F160-45		Cover, Lock	01	Appelez-nous	-
6	7750P024-60		Extrusion, Front Frame	01	Appelez-nous	-
7	7706P161-60		Extrusion, Ctrl Top	01	Appelez-nous	-
8	7720P023-60		Trim, Glass Retainer	01	Appelez-nous	-
9	7706P159-60		Extrusion, Side Fil Rt	01	Appelez-nous	-
9	7706P160-60		Extrusion, Side Fil Lt	01	Appelez-nous	-
10	7756P034-60		Extrusion, Top Filler	01	Appelez-nous	-
11	7756P022-60		Extrusion, Vent (blk)	01	Appelez-nous	-
12	2618F054-51		Panel, Side (lt)	01	Appelez-nous	-
12	2618F053-51		Panel, Side (rt)	01	Appelez-nous	-
13	3804F052-51		Ret Rear Insul	01	Appelez-nous	-
14	3604F101-80		Shield, Air	01	Appelez-nous	-
15	3604F048-80		Shield, Terminal	01	Appelez-nous	-
16	8004P005-60		Support, Glass	01	Appelez-nous	-
17	7101P082-60		Screw	01	Appelez-nous	-
18	3605F168-80		Plate, Microwave Mounting	01	Appelez-nous	-
19	4005F261-51		Cover, Control Side (lt)	01	Appelez-nous	-
20	3807F103-80		Support	01	Appelez-nous	-
21	3807F147-80		Support, Side (rear)	01	Appelez-nous	-
22	3807F151-80		Support, Rear-top	01	Appelez-nous	-
23	3801F105-51		Bracket Retainer Rt	01	Appelez-nous	-
23	3801F106-51		Bracket, Retainer Lf	01	Appelez-nous	-
24	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
