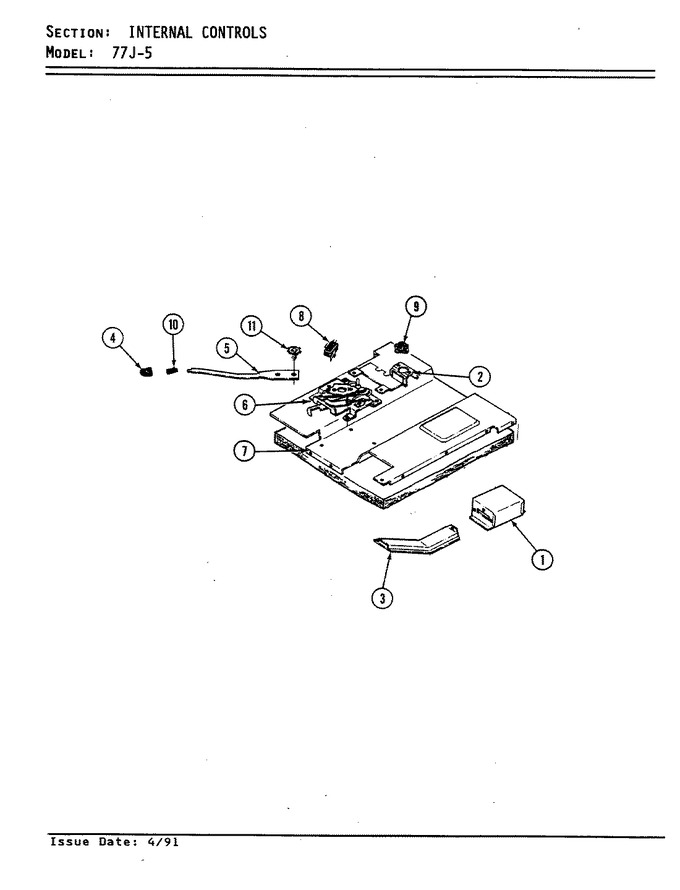

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4006W046-45 | Box, Vent | 01 |
|
- | ||||
| 2 | 3801F128-45 | Bracket, Hi Limit | 01 |
|
- | ||||
| 3 | 7408P014-60 | Receptacle, Fuse | 01 |
|
- | ||||
| 3 | 3801F065-80 | Bracket, Fuse Mtg | 01 |
|
- | ||||
| 3 | 3818W002-15 | Channel, Vent Assembly | 01 |
|
- | ||||
| 3 | 7408P038-60 | Receptacle, Fuse | 04 |
|
- | ||||
| 3 | 7416P002-60 | Fuse | 01 |
|
- | ||||
| 4 | 7701P089-60 | Handle, Latch (wht) | 01 |
|
- | ||||
| 5 | 8009P011-60 | Lever, Latch | 01 |
|
- | ||||
| 6 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 01 |
|
$ 306.52 | ||||
| 7 | 3804F053-51 | Retainer,top | 01 |
|
- | ||||
| 8 | 3801F127-51 | Bracket, Door Latch | 01 |
|
- | ||||
| 8 | 7101P035-60 | Screw, Switch | 01 |
|
- | ||||
| 8 | 7403P007-60 | Switch, Door Lock | 01 |
|
- | ||||
| 9 | 7403P063-60 | Switch, High Limit | 01 |
|
$ 156.41 | ||||
| 10 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 11 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 |
