Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030117		Activator, Monitor	01	Appelez-nous	-
2	Y02030116		Bracket, Door Latch	01	Appelez-nous	-
3	Y02100135		Bumper	01	Appelez-nous	-
4	Y02100166		Choke, Filler (blk)	01	Appelez-nous	-
5	04021262		Frame, Door (blk)	01	Appelez-nous	-
6	02120151		Extrusion, Handle (blk)	01	Appelez-nous	-
6	Y02220096		Glass, Door	01	Appelez-nous	-
7	Y02200017		Hinge, Door	01	Appelez-nous	-
8	790119		Isrt-dr Frame, No Logo	01	Appelez-nous	-
9	02240747		Label, Cook Guide	01	Appelez-nous	-
9	02190056		Latch, Door	01	Appelez-nous	-
10	M0282005		Nut, Hex(must Order Locally)   (Replaces: Y03050041)	01			$ 7.07
11	04021377		Panel, Inner Door (blk)	01	Appelez-nous	-
12	Y03010121		Screw	01	Appelez-nous	-
13	Y03010118		Screw	01	Appelez-nous	-
14	WP74004005		Screw   (Replaces: Y03010135)	01			$ 6.95
15	02120114		Seal, Bottom	01	Appelez-nous	-
16	Y02120121		Seal, Hinge Side	01	Appelez-nous	-
17	Y02120122		Seal, Latch Side	01	Appelez-nous	-
18	02120153		Seal, Top	01	Appelez-nous	-
18	Y03120064		Shim	01	Appelez-nous	-
19	Y03120069		Spacer, Door Window	01	Appelez-nous	-
20	Y03180023		Spring, Door Latch	01	Appelez-nous	-
20	Y02220073		Window, Polyester	01	Appelez-nous	-

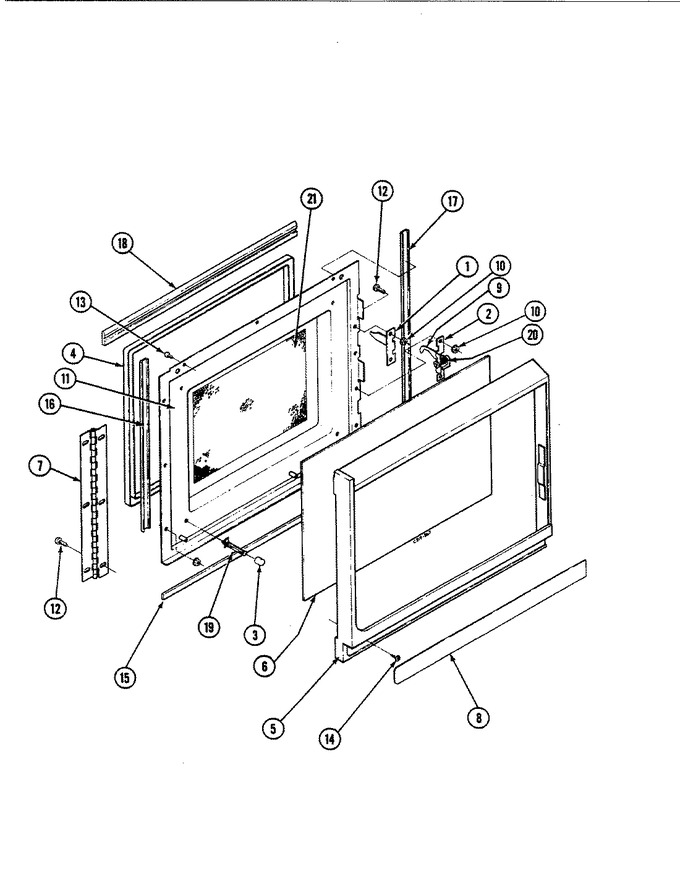

    View Diagram in Separate Window       Print Part List
