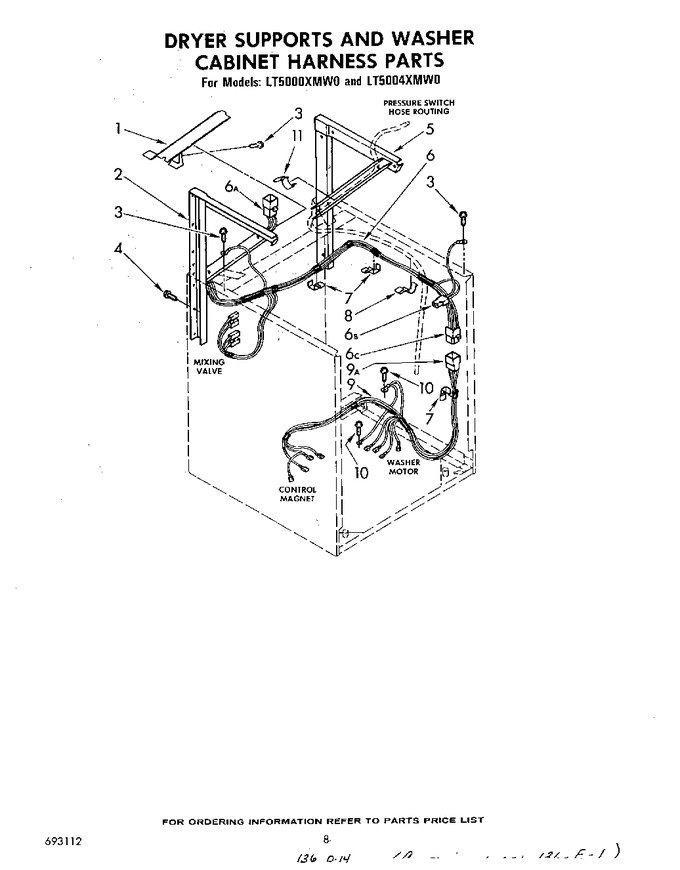

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	694304		Cover, Channel		Appelez-nous	-
2	W11174025		Support, Dryer (l.h.)   (Replaces: 692647)				$ 45.83
3	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
4	WP308544		Screw, 10-24 X 1/2 (8) (washer Cabinet To Dryer Supports)   (Replaces: 308544)			Immediately	$ 6.98
5	W11174024		Support, Dryer (r.h.)   (Replaces: 692646)				$ 117.52
6	692730		Harness, Upper (automatic) (includes Illus. 6a, 6b & 6c)		Appelez-nous	-
7	356387		Clip, Wiring Harness (8)		Appelez-nous	-
8	8528351		Clip, Pressure Switch Hose   (Replaces: 693193)		Appelez-nous	-
9	692729		Harness, Lower (automatic) (gearcase To Motor) (includes Illus. 9a)		Appelez-nous	-
10	WP488234		Screw, 8-32 X 1/4 (2) (motor Ground)   (Replaces: 9412221)				$ 6.07
11	WP90016		Clip, Pressure Switch Hose (2)   (Replaces: 90016)				$ 10.19
6A	692996		Plug, Terminal (9-way) (connects With Automatic Console Harness)		Appelez-nous	-
6B	353424		Plug, Terminal (3-way) (connects With Automatic Lid Switch Harness)				$ 18.95
6C	94611		Plug, Terminal (9-way) (connects With Lower Gearcase To Motor Harness)		Appelez-nous	-
9A	94612		Cap, Terminal (9-way) (connects With Upper Cabinet Harness)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
