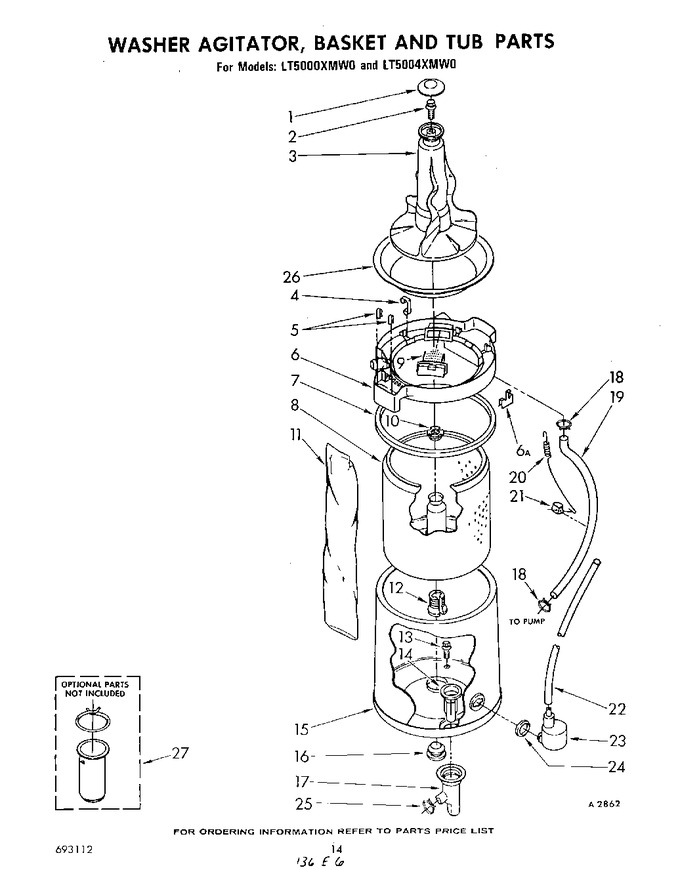

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 356381 | Cap, Agitator |
|
- | |||||
| 2 | WP358237 | Screw & Washer, Agitator (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | 367200 | Agitator |
|
- | |||||
| 4 | 356141 | Clip, Tub Ring (5) |
|
- | |||||
| 5 | 8577411 | Clip, Drain Off Tube (2) (Replaces: 352155) |
|
$ 7.25 | |||||
| 6 | 384676 | Tub Ring (includes Illus. 5 & 11) |
|
- | |||||
| 7 | 356380 | Gasket, Tub Ring |
|
- | |||||
| 8 | 359174 | Basket |
|
- | |||||
| 9 | 384477 | Filter & Latch |
|
$ 60.67 | |||||
| 10 | 356995 | Locknut |
|
- | |||||
| 11 | 356398 | Tube, Drain Off |
|
$ 71.61 | |||||
| 12 | 357836 | Block, Basket Driver |
|
- | |||||
| 13 | WP358237 | Screw & Washer (4) (Replaces: 370571) |
|
Immediately | $ 7.97 | ||||
| 14 | 356201 | Funnel, Drain |
|
- | |||||
| 15 | 367162 | Tub |
|
- | |||||
| 16 | W10814296 | Gasket, Centerpost (Replaces: 96690) |
|
Immediately | $ 8.26 | ||||
| 17 | 357160 | Manifold, Tub Outlet |
|
- | |||||
| 18 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 19 | 356397 | Hose, Tub Ring To Pump |
|
- | |||||
| 20 | 356887 | Spring, Hose Retaining |
|
- | |||||
| 21 | 356982 | Bracket, Hose Retaining Spring |
|
- | |||||
| 22 | WP353244 | Hose, Pressure Switch (Replaces: 692726) |
|
Immediately | $ 53.94 | ||||
| 23 | 360804 | Air Dome |
|
- | |||||
| 24 | 351830 | Seal, Air Dome |
|
$ 5.84 | |||||
| 25 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 26 | 384453 | Shield, Tub Ring |
|
- | |||||
| 27 | 285150 | Manifold Repair Kit (this Kit Eliminates The Need To Remove The Tub From The Compact Washer When Cle |
|
- | |||||
| 6A | 350987 | Tub Ring Retainer Kit (used To Retain Tub Ring Shield If One Or More Tub Ring Tabs Are Broken. Kit C |
|
- |
