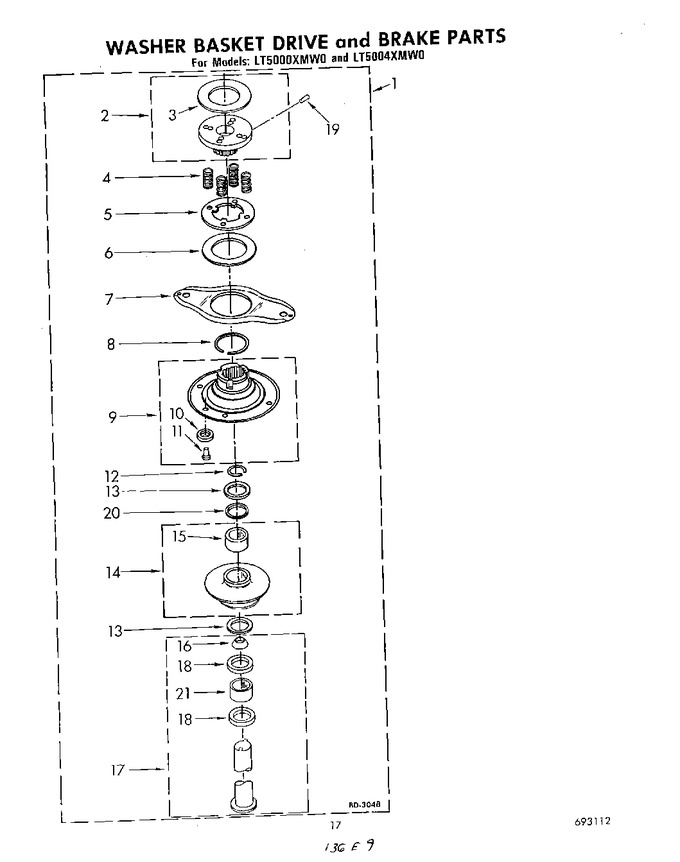

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	383932		Basket Drive & Brake   (Replaces: 359175)		Appelez-nous	-
2	350508		Drum, Brake (upper)				$ 35.16
3	350507		Lining, Basket Brake (upper)   (Replaces: 354253)				$ 1.17
4	356152		Spring, Basket Drive (gray Black) (4)		Appelez-nous	-
5	97664		Drum, Brake (lower)		Appelez-nous	-
6	356396		Lining, Basket Brake (lower)		Appelez-nous	-
7	92903		Yoke, Brake		Appelez-nous	-
8	16049		Ring, Snap		Appelez-nous	-
9	357716		Plate & Lining, Basket Drive		Appelez-nous	-
10	356405		Lining, Basket Drive (set Of 3)		Appelez-nous	-
11	98281		Eyelet (3)		Appelez-nous	-
12	W11033823		Ring, Retaining   (Replaces: 90368)				$ 11.21
13	353320		Washer, Thrust (2)		Appelez-nous	-
14	366948		Pulley, Basket Drive		Appelez-nous	-
15	16033		Bearing, Drive Pulley				$ 798.52
16	WP91939		Seal. Oil   (Replaces: 91939)			Immediately	$ 6.47
17	285896		Drive Tube & Bearing, Basket   (Replaces: 357965)				$ 20.15
18	WP356427		Seal, Drive Tube   (Replaces: 356427)			Immediately	$ 6.47
19	356057		Set Screw, 5/16-18 X 13/16   (Replaces: 358931)				$ 1.49
20	354319		Retainer, Oil		Appelez-nous	-
21	356937		Spacer, Agitator Shaft		Appelez-nous	-
