SELECT A DIAGRAM
New Model Search:

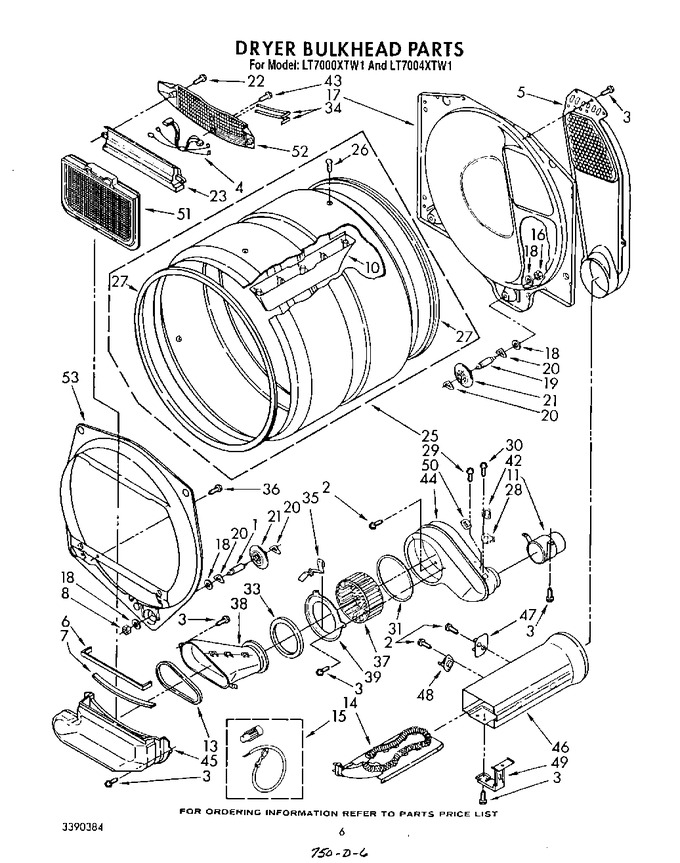

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Roller (Replaces: 3387460) |
|
Immediately | $ 55.99 | ||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 697778) |
|
Immediately | $ 7.04 | ||||
| 3 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 697775) |
|
Immediately | $ 7.07 | ||||
| 4 | 3389947 | Harness, Sensor |
|
- | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 280.55 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.17 | ||||
| 7 | WP3391906 | Seal, Lint Duct (Replaces: 3391906) |
|
$ 7.73 | |||||
| 8 | 120377 | Nut (2) |
|
- | |||||
| 10 | 279982 | Baffle, Drum (3) (Replaces: 3389449) |
|
$ 212.75 | |||||
| 11 | 279823 | Pipe, Exhaust (Replaces: 3391335) |
|
$ 136.75 | |||||
| 13 | WP697770 | Seal, Transition Duct To Lint Duct (Replaces: 3391685) |
|
Immediately | $ 7.09 | ||||
| 14 | WP3387749 | Element, Heater (Replaces: 3387749) |
|
Immediately | $ 281.64 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | 3387709 | Nut, Hex (2) |
|
$ 5.60 | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 315.10 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 12.63 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3387707) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | WPW10314173 | Support, Roller (Replaces: 3388342) |
|
Immediately | $ 25.65 | ||||
| 22 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 23 | 697768 | Housing, Outlet |
|
- | |||||
| 25 | W10518375 | Drum Assembly (Replaces: 3389448) |
|
$ 401.47 | |||||
| 26 | 697777 | Screw, 11-16 X 7/8 (6) |
|
- | |||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 28 | 61894 | Heater, Thermostat |
|
$ 37.38 | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (2) (Replaces: 3390646) |
|
$ 6.75 | |||||
| 30 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 31 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.09 | ||||
| 33 | WP8566209 | Seal, Transition Duct (Replaces: 3391293) |
|
$ 49.91 | |||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 5.55 | ||||
| 35 | 3390935 | Clip, Duct Locator |
|
$ 11.48 | |||||
| 36 | WP308685 | Screw (2) (Replaces: 98518) |
|
Immediately | $ 7.08 | ||||
| 37 | WP697772 | Wheel, Blower Harness (3) (Replaces: 697772) |
|
Immediately | $ 53.16 | ||||
| 38 | 279704 | Duct, Transition (includes Illus. No.33) (Replaces: 3389445) |
|
$ 160.18 | |||||
| 39 | 279780 | Plate, Blower (includes Illus. No. 60) (Replaces: 697366) |
|
$ 83.66 | |||||
| 42 | AT022 | Thermostat 150~ F (65.6~c) (Replaces: 660039) |
|
Immediately | $ 31.65 | ||||
| 42 | WP694674 | Thermostat, Operating 150~f (66~c) (alt.) (Replaces: 341146) |
|
Immediately | $ 45.46 | ||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 44 | WP8544363 | Housing, Blower (Replaces: 697363) |
|
$ 137.37 | |||||
| 45 | 279700 | Lint Duct Assembly (includes Illus. No. 7 & 13) (Replaces: 3388909) |
|
$ 163.06 | |||||
| 46 | W10802681 | Box, Heater (2) (Replaces: 697715) |
|
Immediately | $ 116.70 | ||||
| 47 | 279769 | Thermal Cutoff (Replaces: 3389946) |
|
Immediately | $ 56.57 | ||||
| 48 | WP3390291 | Fixed, Thermostat (Replaces: 696397) |
|
Immediately | $ 85.45 | ||||
| 49 | 3389648 | Bracket, Heater Mounting (Replaces: 3389647) |
|
- | |||||
| 50 | WP3403607 | Limiter, Thermal (Replaces: 3391927) |
|
Immediately | $ 40.22 | ||||
| 51 | WP3389644 | Screen, Lint (Replaces: 3389644) |
|
Immediately | $ 82.04 | ||||
| 52 | 697767 | Grille, Outlet |
|
- | |||||
| 53 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 187.23 |
