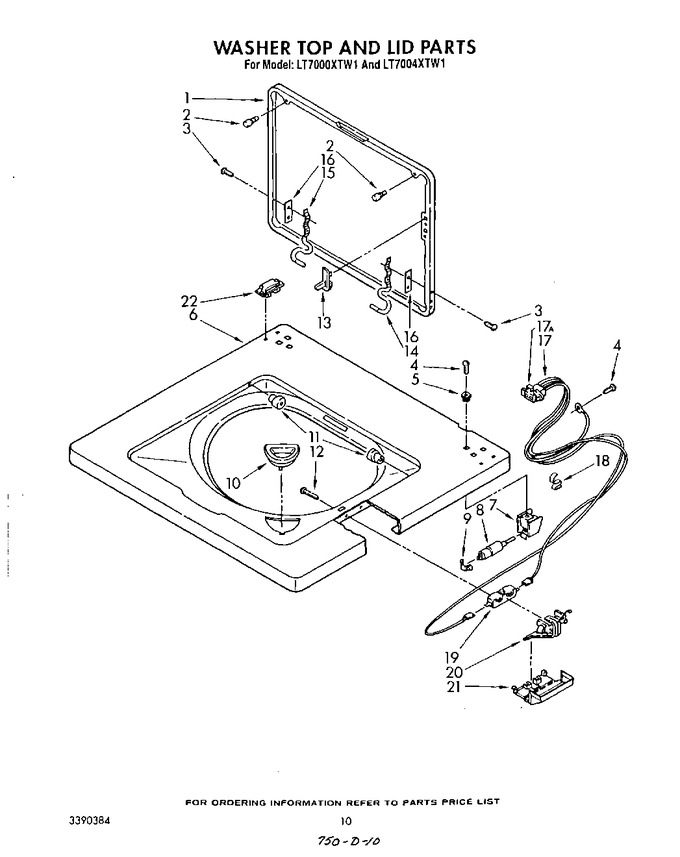

07 - Washer Top And Lid


08 - Washer Cabinet


09 - Brake, Clutch, Gearcase, Motor And Pump


10 - Machine Base


11 - Agitator, Basket And Tub


12 - Gearcase


13 - Brake And Drive Tube


14 - Washer Water System


15 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	388450		Lid, Top (white)		Appelez-nous	-
1	388454		Lid, Top (golden Wheat)		Appelez-nous	-
1	388452		Lid, Top (platinum)		Appelez-nous	-
1	388453		Lid, Top (toast)		Appelez-nous	-
1	388451		Lid, Top (almond)		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 7.14
3	WPW10119828		Screw And Washer   (Replaces: 3351355)			Immediately	$ 6.47
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
5	WP692400		Nut, Push-in (2)   (Replaces: 692400)			Immediately	$ 6.88
6	3349818		Top, Console (almond)		Appelez-nous	-
6	3349817		Top, Console (white)			Immediately	$ 312.27
6	3349819		Top, Console (toast)		Appelez-nous	-
6	3349821		Top, Console (golden Wheat)		Appelez-nous	-
6	3349820		Top, Console (platinum)		Appelez-nous	-
7	3354020		Bracket, Mounting (2)   (Replaces: 3350099)				$ 8.57
8	WP3350152		Retainer, Lid Assembly (2)   (Replaces: 3350152)				$ 40.23
9	3350828		Clip, Retainer (2)				$ 57.81
10	WP3362952		Dispenser, Bleach   (Replaces: 63289)			Immediately	$ 10.88
11	WP21258		Hinge, Bearing (2)   (Replaces: 3391899)			Immediately	$ 6.87
12	354764		Screw And Washer		Appelez-nous	-
13	WP358684		Strike, Lid   (Replaces: 358684)			Immediately	$ 6.90
14	3350101		Hinge, R.h.				$ 30.10
15	3350102		Hinge, L.h.				$ 30.83
16	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
17	3350212		Plug, 3-way (uses Terminal 94613)		Appelez-nous	-
17	3350213		Harness, Lid Switch		Appelez-nous	-
18	WP90016		Clip, Wire (4)   (Replaces: 90016)				$ 10.19
19	W10820036		Switch, Lid   (Replaces: 661517)			Immediately	$ 27.45
20	357347		Actuator, Switch		Appelez-nous	-
21	WP359231		Shield, Lid Switch   (Replaces: 359231)				$ 7.58
22	W11116924		Locator, Top   (Replaces: 3390481)				$ 19.50
