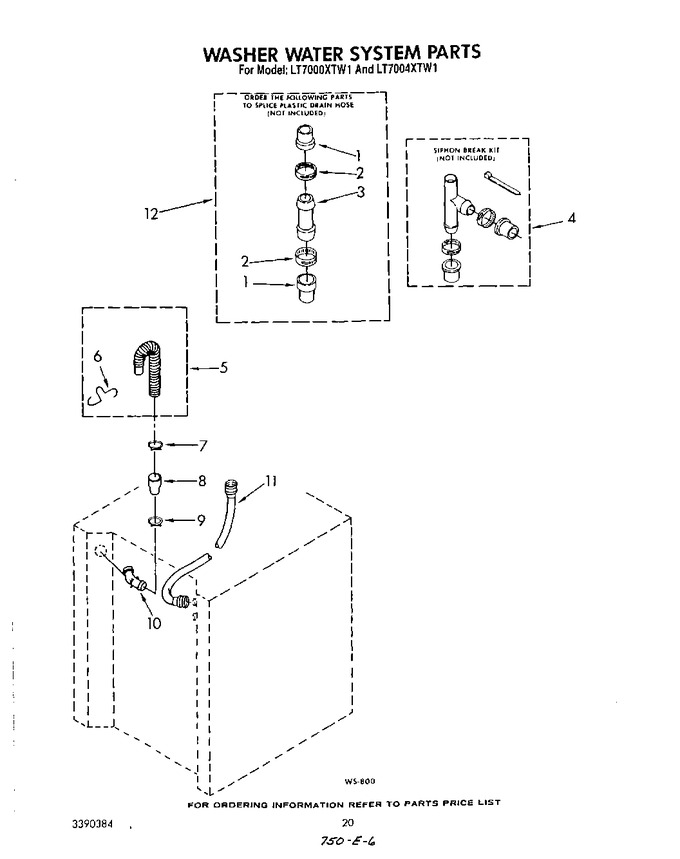

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 285321 | Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves) |
|
$ 75.52 | |||||
| 2 | WP285655 | Clamp, Hose (2) (Replaces: 65349) |
|
Immediately | $ 7.55 | ||||
| 3 | WP16272 | Connector Straight (Replaces: 16272) |
|
$ 7.04 | |||||
| 4 | 76660 | Siphon Break Kit (not Included) (Replaces: 285320) |
|
Immediately | $ 119.93 | ||||
| 5 | 285666 | Hose, Corrugated Plastic Drain (10 Ft.) (not Included) (Replaces: 388418) |
|
Immediately | $ 56.11 | ||||
| 5 | 285664 | Hose, Corrugated Plastic Drain (5-1/2 Ft.) (Replaces: 387325) |
|
Immediately | $ 33.20 | ||||
| 6 | 357247 | Retainer, Drain Hose |
|
- | |||||
| 7 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.03 | ||||
| 8 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 77.48 | |||||
| 9 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.55 | ||||
| 10 | W11213338 | Connector, Hose (Replaces: 356739) |
|
$ 63.54 | |||||
| 11 | WP89503 | Hose, Inlet (2) (Replaces: 3349716) |
|
Immediately | $ 21.68 | ||||
| 12 | 285442 | Connector Kit, Plastic Drain Hose |
|
$ 84.62 |
