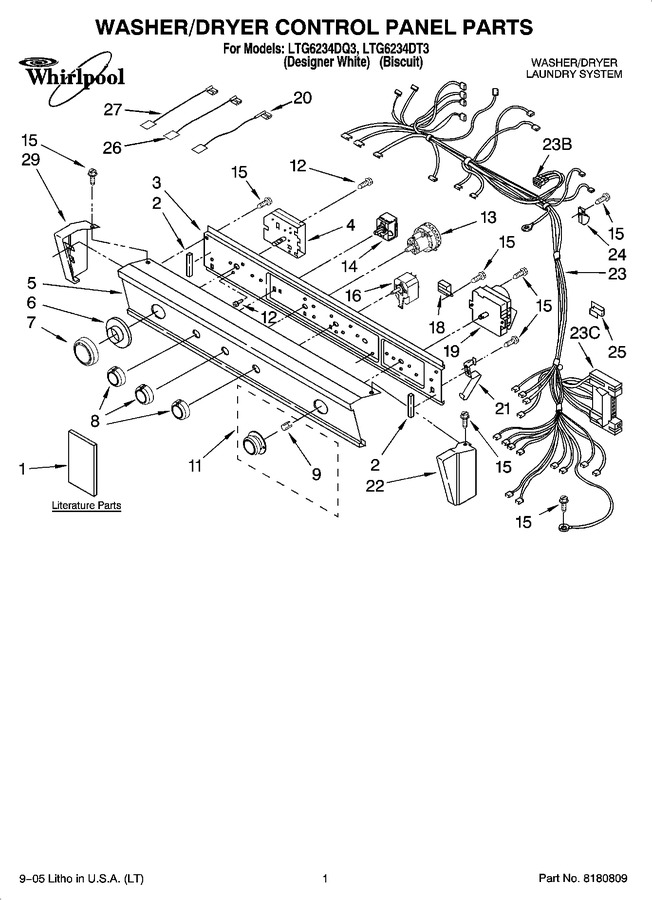

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
8576493 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
8572777 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 1 |
3406880 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
8542752 |
|
Sheet, Cycle Feature |
|
Appelez-nous
|
- |
|
|
|
| 1 |
8546674 |
|
Wiring Diagram |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3390688 |
|
Spacer- Foam Pad (2) |
|
|
|
$ 8.13 |
|
|
| 3 |
W10732070 |
|
Bracket, Control (includes Illus. 2) (Replaces: 8528583) |
|
|
|
$ 158.08 |
|
|
| 4 |
WP3948357 |
 |
Timer, Washer (Replaces: 3948357) |
|
|
Immediately |
$ 285.44 |
|
|
| 5 |
3406828 |
|
Panel, Control (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
3396689 |
|
Panel, Control (white) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
3957845 |
|
Dial, (washer) (white) |
|
|
|
$ 21.11 |
|
|
| 6 |
3957846 |
|
Dial, (washer) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
3957825 |
 |
Knob, Timer (washer) (white) |
|
|
|
$ 51.56 |
|
|
| 7 |
3957826 |
|
Knob, Timer (washer) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
3957797 |
 |
Knob, Control (3) (biscuit) |
|
|
|
$ 45.36 |
|
|
| 8 |
WP3957796 |
 |
Knob, Control (3) (white) (Replaces: 3957796) |
|
|
Immediately |
$ 49.35 |
|
|
| 9 |
WP688805 |
 |
Spring Clip, Knob (Replaces: 688805) |
|
|
Immediately |
$ 7.03 |
|
|
| 11 |
WP3957751 |
 |
Knob, Timer (dryer) (biscuit) (Replaces: 3957751) |
|
|
|
$ 42.36 |
|
|
| 11 |
WP3957750 |
 |
Knob, Timer (dryer) (white) (Replaces: 3957750) |
|
|
Immediately |
$ 53.04 |
|
|
| 12 |
WP3400064 |
 |
Screw 10-32 X 5/16 (Replaces: 3400064) |
|
|
|
$ 6.26 |
|
|
| 13 |
8546175 |
|
Switch, Pressure |
|
Appelez-nous
|
- |
|
|
|
| 14 |
3405157 |
|
Switch, Temperature |
|
|
|
$ 56.97 |
|
|
| 15 |
WP90767 |
 |
Screw, 8-18 X 3/8 (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 16 |
WP3404233 |
 |
Switch, Push-to-start (Replaces: 3404233) |
|
|
Immediately |
$ 98.66 |
|
|
| 18 |
WP694419 |
 |
Buzzer, Mini (Replaces: 694419) |
|
|
|
$ 114.90 |
|
|
| 19 |
WP3976569 |
 |
Timer, Dryer (Replaces: 3976569) |
|
|
Immediately |
$ 301.94 |
|
|
| 20 |
3393810 |
|
Jumper Wire (pts-timer) |
|
Appelez-nous
|
- |
|
|
|
| 21 |
3389453 |
|
Bracket, Hinge (2) |
|
|
|
$ 78.06 |
|
|
| 22 |
3389462 |
|
End Cap (rh) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
3389456 |
|
End Cap (rh) (white) |
|
|
|
$ 40.11 |
|
|
| 23 |
3398983 |
|
Harness - Dryer |
|
Appelez-nous
|
- |
|
|
|
| 24 |
7111P002-60 |
|
Clamp, Harness (Replaces: 3390604) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W10134185 |
|
Clip, Harness (2) (Replaces: 3390422) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
3401674 |
|
Jumper Wire (buzzer-timer) |
|
|
|
$ 34.37 |
|
|
| 27 |
3401684 |
|
Jumper, Wire (buzzer-pts) |
|
|
|
$ 34.57 |
|
|
| 29 |
3389470 |
|
End Cap (lh) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
3389464 |
|
End Cap (lh) (white) |
|
|
|
$ 26.75 |
|
|
| 23B |
2154470 |
|
Receptacle, |
|
Appelez-nous
|
- |
|
|
|
| 23C |
3395683 |
 |
Connector (motor-dryer) |
|
|
Immediately |
$ 46.67 |
|
|
