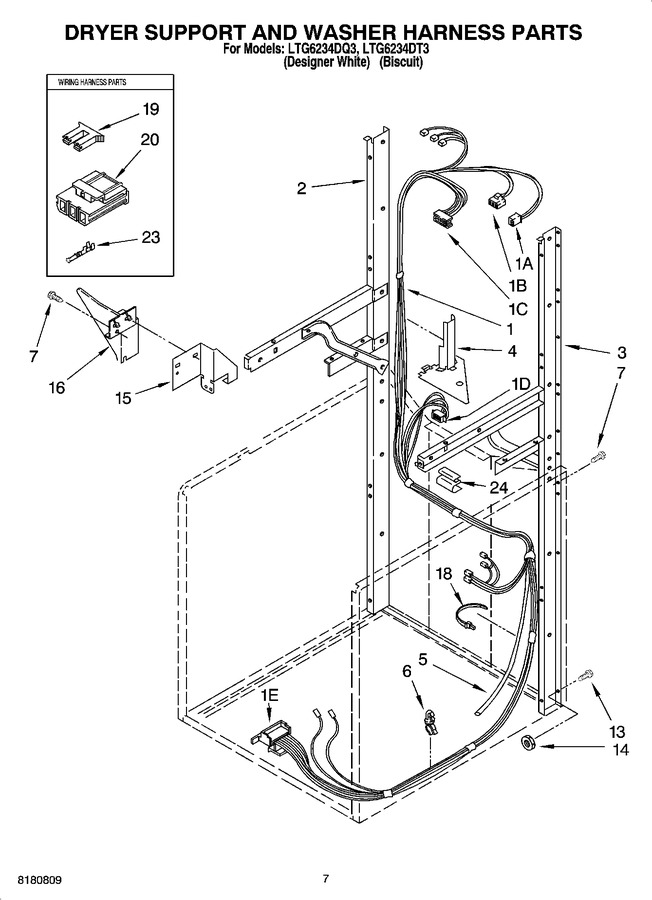

01 - Washer/dryer Control Panel Parts


02 - Dryer Front Panel And Door Parts


03 - Dryer Cabinet And Motor Parts


04 - Dryer Bulkhead Parts


05 - Dryer Support And Washer Harness Parts


06 - Washer Top And Lid Parts


07 - Washer Cabinet Parts


08 - Brake, Clutch, Gearcase, Motor And Pump Parts


09 - Machine Base Parts


10 - Agitator, Basket And Tub Parts


11 - Gearcase Parts


12 - Brake And Drive Tube Parts


13 - Water System Parts


14 - Miscellaneous Parts


15 - 3402855 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8299848		Harness - Washer				$ 124.43
2	3388851		Channel Assembly (left Hand Side)				$ 288.73
3	3388850		Channel Assembly (right Hand Side)				$ 289.31
4	3390609		Shield, Harness		Appelez-nous	-
5	W10834213		Hose, Pressure Switch   (Replaces: 8545438)			Immediately	$ 28.51
6	8281256		Clip, Harness		Appelez-nous	-
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
13	3400300		Bolt, 5/16-18 X 1/2		Appelez-nous	-
14	3393930		Nut, Hex (4)		Appelez-nous	-
15	3392232		Shield, Front		Appelez-nous	-
16	3390336		Shield, Thermostat		Appelez-nous	-
18	3391249		Clip, Harness (2)		Appelez-nous	-
19	3354925		Connector H-pod		Appelez-nous	-
20	3360056		Connector, Pressure Switch				$ 14.35
23	94613		Terminal, (male)		Appelez-nous	-
23	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
24	63523		Protector, Harness				$ 169.95
1A	3350130		Plug, 3 Way				$ 11.72
1B	3347243		Connector, 5 Way		Appelez-nous	-
1C	W10876590		Block, Disconnect Timer   (Replaces: 352089)				$ 11.48
1D	3350211		Receptacle, 3 Way		Appelez-nous	-
1E	WP62505		Block, Disconnect   (Replaces: 62505)				$ 21.35
