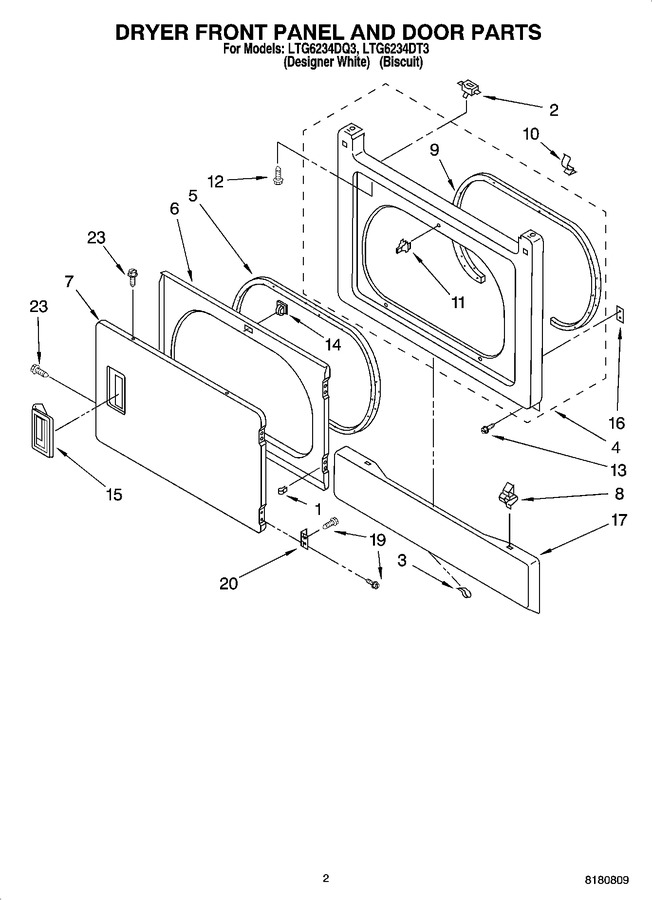

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
3389249 |
|
Nut, Push (4) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
WP3391902 |
 |
Switch, Door (Replaces: 3391901) |
|
|
Immediately |
$ 53.86 |
|
|
| 3 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 10.25 |
|
|
| 4 |
3977780 |
|
Panel, Front (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
279718 |
|
Panel, Front (white) (Replaces: 3392547) |
|
|
|
$ 349.15 |
|
|
| 5 |
WP3390735 |
 |
Seal, Door (Replaces: 3390735) |
|
|
|
$ 117.54 |
|
|
| 6 |
280083 |
 |
Door, Rear (Replaces: 3392563) |
|
|
|
$ 258.32 |
|
|
| 7 |
W11663440 |
|
Door, Front (white) (Replaces: 3387872) |
|
|
|
$ 233.43 |
|
|
| 7 |
3387877 |
|
Door, Front (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
WP3388229 |
 |
Retainer, Toe Panel (2) (Replaces: 3388229) |
|
|
Immediately |
$ 7.61 |
|
|
| 9 |
WP3387242 |
 |
Bearing & Seal (Replaces: 3387242) |
|
|
Immediately |
$ 28.28 |
|
|
| 10 |
3392602 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 11 |
279570 |
 |
Strike, Panel (Replaces: 696144) |
|
|
Immediately |
$ 8.00 |
|
|
| 12 |
WP3395530 |
 |
Screw, Door Switch Mounting (2) (Replaces: 697773) |
|
|
|
$ 6.93 |
|
|
| 13 |
WP308685 |
 |
Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
|
Immediately |
$ 7.08 |
|
|
| 14 |
279570 |
|
Catch, Door (Replaces: 3392538) |
|
|
Immediately |
$ 8.00 |
|
|
| 15 |
3389528 |
|
Handle, Door (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
3389522 |
|
Handle, Door (white) |
|
|
|
$ 70.11 |
|
|
| 16 |
WP3390902 |
|
Clip, Door Hinge (2) (Replaces: 3390902) |
|
|
|
$ 10.00 |
|
|
| 17 |
3388958 |
|
Panel, Toe (white) |
|
|
|
$ 118.94 |
|
|
| 17 |
3388963 |
|
Panel, Toe (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
WP488627 |
 |
Screw, 8-18 X 1/2 (Replaces: 342055) |
|
|
|
$ 6.81 |
|
|
| 20 |
W11175815 |
 |
Hinge & Pin, Door (2) (Replaces: 3389247) |
|
|
|
$ 73.27 |
|
|
| 23 |
WP694091 |
 |
Screw, 8-18 X 3/8 (Replaces: 694091) |
|
|
|
$ 6.47 |
|
|
