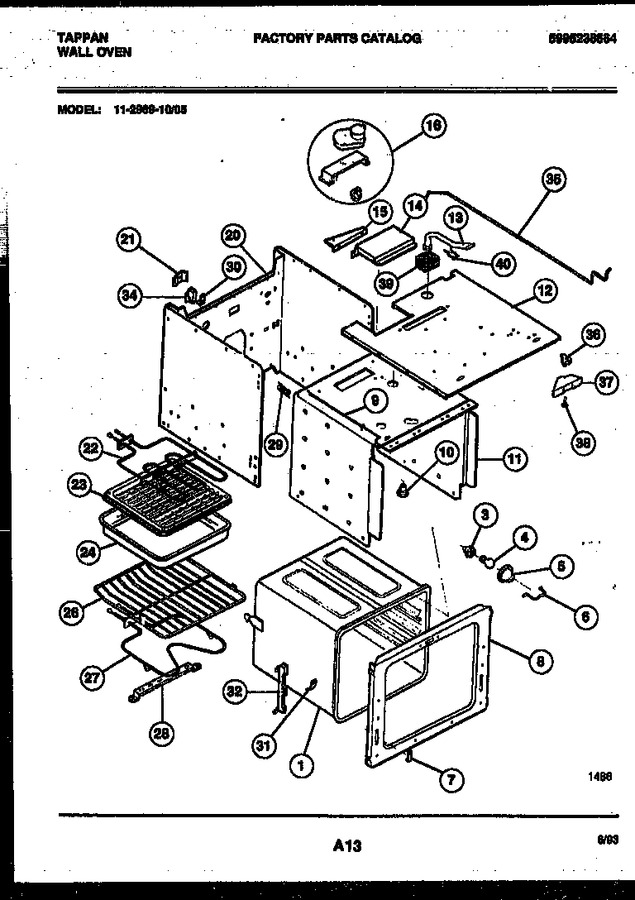

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296958		Liner-oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	3201908		Bulb		Appelez-nous	-
5	5304524341		Lens   (Replaces: 3201911)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	5303296326		Frame-front		Appelez-nous	-
9	3202077		Rod-switch		Appelez-nous	-
10	3205683		Vent - Tube Assembly		Appelez-nous	-
11	3202445		Shield-wool		Appelez-nous	-
12	3203747		Wrapper-top		Appelez-nous	-
13	3016301		Duct - Vent Tube		Appelez-nous	-
14	3016296		Cover-motor		Appelez-nous	-
15	3016276		Bracket-motor Mtg		Appelez-nous	-
16	5303016242		Motor-latch Assembly		Appelez-nous	-
20	3203861		Wrapper		Appelez-nous	-
21	3016281		Spring, Oven (2)		Appelez-nous	-
22	5303016247		Element, Broil				$ 223.97
23	5303286735		Insert-broiler Pan		Appelez-nous	-
24	5303286736		Pan Broiler		Appelez-nous	-
26	5303299366		Rack-oven		Appelez-nous	-
26	5303299367		Rack-regular		Appelez-nous	-
27	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
28	3016248		Support, Broil Element		Appelez-nous	-
29	3204114		Spring-rod		Appelez-nous	-
30	3202384		Bracket - Switch Mtg		Appelez-nous	-
31	3201632		Spacer, Oven (2)		Appelez-nous	-
32	3201631		Channel, Hinge				$ 58.22
34	5303275924		Switch - Oven Light				$ 92.03
35	3016241		Rod		Appelez-nous	-
36	3051648		Latch		Appelez-nous	-
37	3051647		Housing, Latch		Appelez-nous	-
38	5308012004		Axle-latch				$ 8.29
39	3016302		Insulation - Vent		Appelez-nous	-
40	3016303		Clip-insulation Retainer		Appelez-nous	-
*85875	5303284616		Thermostat Bulb Clip				$ 9.86
*85875	3016274		Insulation, Back		Appelez-nous	-
*85875	3016323		Insulation, Wrapper		Appelez-nous	-
*85875	3016319		Insulation-back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
