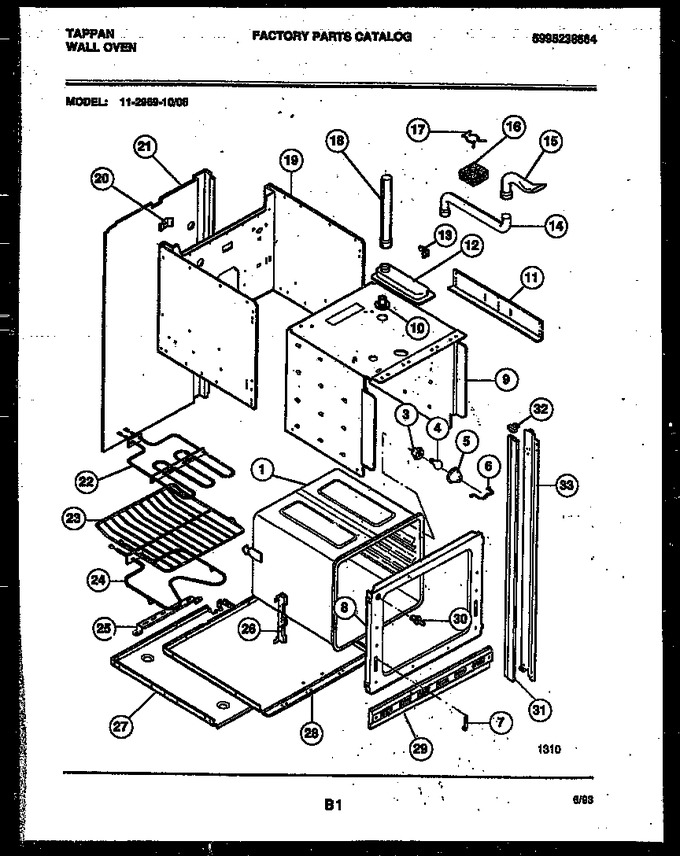

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299313		Liner-oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	3201908		Bulb		Appelez-nous	-
5	5304524341		Lens   (Replaces: 3201911)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	5303299314		Frame-front		Appelez-nous	-
9	3202445		Shield-wool		Appelez-nous	-
10	5303206498		Vent-tube Assembly		Appelez-nous	-
11	3016278		Support, Height (2)		Appelez-nous	-
12	3016324		Duct-oven Vent		Appelez-nous	-
13	3016326		Bracket-oven Vent		Appelez-nous	-
14	3016327		Duct-oven Vent Pipe		Appelez-nous	-
15	3016331		Duct-vent Tube		Appelez-nous	-
16	3016302		Insulation - Vent		Appelez-nous	-
17	3016303		Clip-insulation Retainer		Appelez-nous	-
18	3016325		Duct-oven Vent Cent		Appelez-nous	-
19	3202448		Wrapper		Appelez-nous	-
20	3016281		Spring, Oven (2)		Appelez-nous	-
21	3203859		Cover-rear		Appelez-nous	-
22	5303016247		Element, Broil				$ 223.97
23	5303299366		Rack-oven		Appelez-nous	-
24	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
25	3016248		Support, Broil Element		Appelez-nous	-
26	3201631		Channel, Hinge				$ 58.22
27	3202447		Wrapper-base		Appelez-nous	-
28	3202446		Shield-insulation		Appelez-nous	-
29	5303299368		Lower Oven Trim		Appelez-nous	-
30	5301314211		Switch-oven Light				$ 95.29
31	3016321		Trim-inner-rh		Appelez-nous	-
32	5303271106		Trim-cap Rh		Appelez-nous	-
33	5303283302		Trim-side Outer (2)		Appelez-nous	-
*85877	3204204		Insulation-back		Appelez-nous	-
*85877	5303284616		Thermostat Bulb Clip				$ 9.86
*85877	5303271040		Insulation-wrap		Appelez-nous	-
31A	3016322		Trim-inner-lh		Appelez-nous	-
32A	5303271107		Trim-cap Lh		Appelez-nous	-
