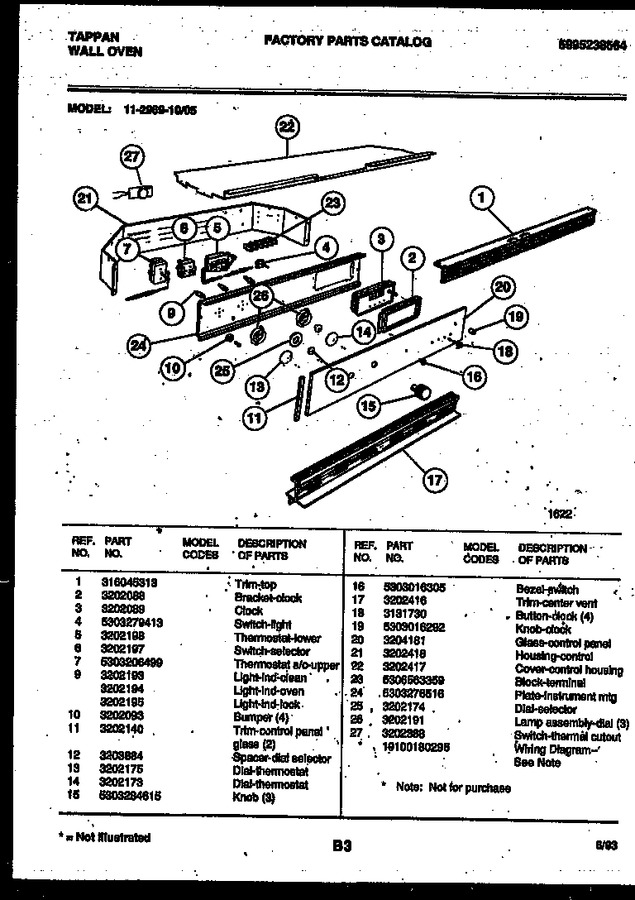

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316045313 | Trim-top |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 5303279413 | Switch-light |
|
- | |||||
| 5 | 3202198 | Thermostat (lower) |
|
- | |||||
| 6 | 3202197 | Switch, Selector |
|
- | |||||
| 7 | 5303206499 | Thermostat S/c-upper |
|
- | |||||
| 9 | 3202193 | Light-ind Clean |
|
- | |||||
| 9 | 3202194 | Light-ind Oven |
|
- | |||||
| 9 | 3202195 | Light-ind Lock |
|
- | |||||
| 10 | 3202093 | Bumper (4) |
|
- | |||||
| 11 | 3202140 | Trim, Control Panel Glass (2) |
|
- | |||||
| 12 | 3203884 | Spacer, Dial, Selector |
|
- | |||||
| 13 | 3202175 | Dial-thermostat |
|
- | |||||
| 14 | 3202173 | Dial-thermostat |
|
- | |||||
| 15 | 5303284615 | Knob (3) |
|
- | |||||
| 16 | 5303016305 | Bezel - Switch |
|
- | |||||
| 17 | 3202416 | Trim-center Vent |
|
- | |||||
| 18 | 3131730 | Button-clock (4) |
|
- | |||||
| 19 | 5303016292 | Knob-clock |
|
- | |||||
| 20 | 3204181 | Glass-control Panel |
|
- | |||||
| 21 | 3202418 | Housing-control |
|
- | |||||
| 22 | 3202417 | Cover-control Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 5303276516 | Plate-instrument Mtg |
|
- | |||||
| 25 | 3202174 | Dial-selector |
|
- | |||||
| 26 | 3202191 | Lamp Assembly-dial (3) |
|
- | |||||
| 27 | 318003605 | Switch - Thermal Cutout (Replaces: 3202388) |
|
$ 178.61 | |||||
| *85880 | 19100180295 | Wiring Diagram (not For Purchase) |
|
- |
