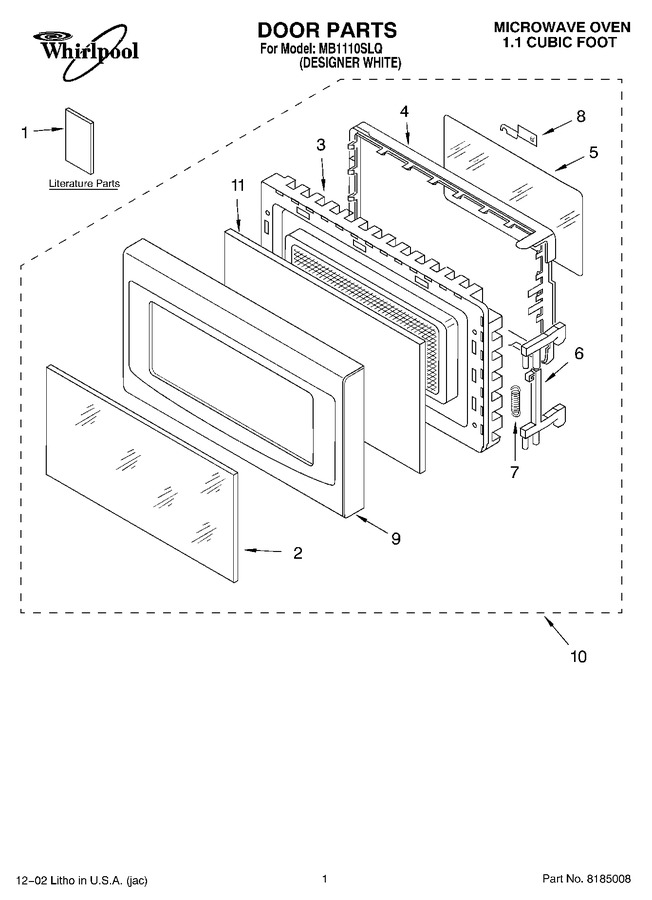

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8185135 | Literature Parts (manual, Service) |
|
- | |||||
| 1 | LIT8185134 | Literature Parts (guide, U & C) |
|
- | |||||
| 2 | 8185136 | Front Screen |
|
- | |||||
| 3 | 8171794 | Door Frame Assembly |
|
- | |||||
| 4 | 8171795 | Choke Cover |
|
- | |||||
| 5 | 8171796 | Tape, Seal |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 4359707 | Spring, Latch |
|
- | |||||
| 8 | 4359710 | Cap |
|
- | |||||
| 9 | 8185137 | Panel, Door |
|
- | |||||
| 10 | 8185138 | Door Assembly |
|
- | |||||
| 11 | 8185139 | Baffle, Door |
|
- |
