01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts

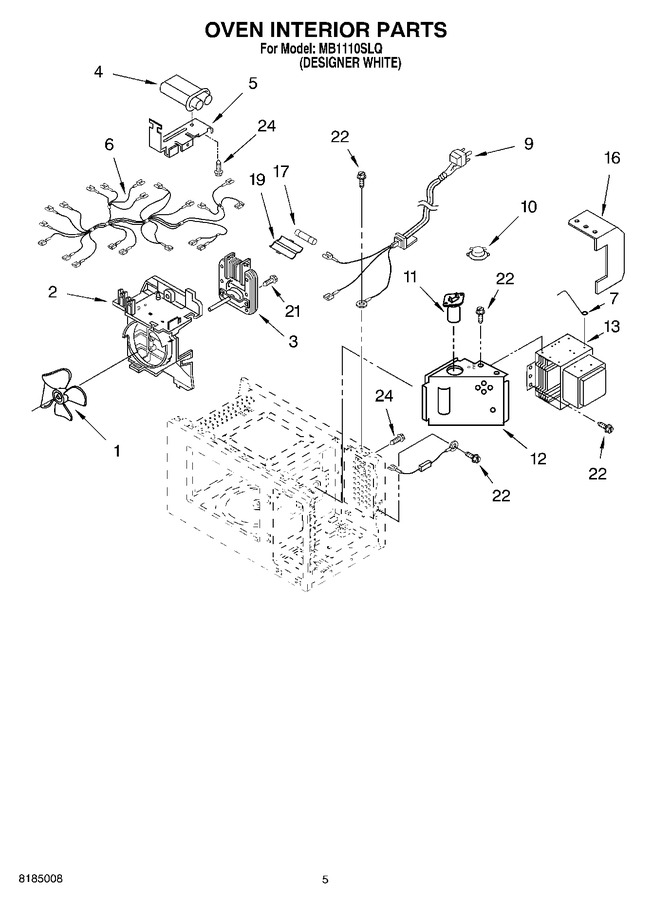

05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158758 | Propeller |
|
- | |||||
| 2 | 4359158 | Guide, Suction |
|
- | |||||
| 3 | 8183767 | Motor, Fan |
|
- | |||||
| 4 | 4359049 | H.v. Capacitor |
|
- | |||||
| 5 | 4359161 | H.v.c. Bracket |
|
- | |||||
| 6 | 8185127 | Leadwire Assembly |
|
- | |||||
| 7 | 8185128 | Bracket, Support |
|
- | |||||
| 8 | WP8205489 | H.v. Diode Cable (Replaces: 8171879) |
|
$ 58.19 | |||||
| 9 | 8172064 | Power Cord |
|
- | |||||
| 10 | 4358698 | Thermostat |
|
- | |||||
| 11 | 4359741 | Lamp, Baseless |
|
$ 37.00 | |||||
| 12 | 8171986 | Duct, Air |
|
- | |||||
| 13 | W10859575 | Magnetron (Replaces: 8184652) |
|
$ 361.62 | |||||
| 16 | 8183508 | Bracker, Mounting |
|
- | |||||
| 17 | WP8183507 | Fuse (Replaces: 8183507) |
|
$ 18.33 | |||||
| 19 | 4358659 | Cap |
|
- | |||||
| 21 | 4358190 | Screw |
|
- | |||||
| 22 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 24 | 4358381 | Screw |
|
- |
