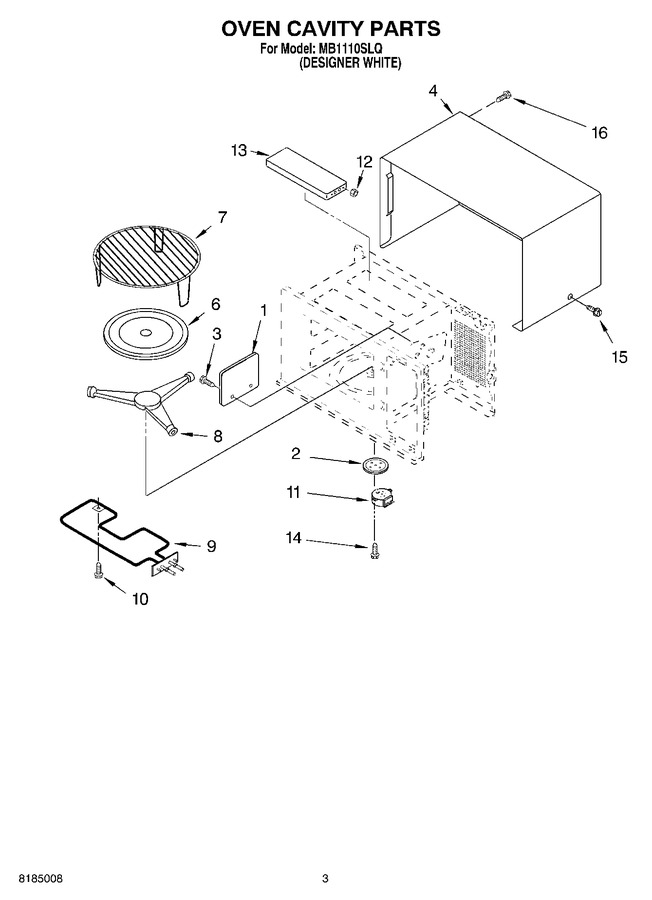

03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171983 | Canopy |
|
- | |||||
| 2 | 8171804 | Mount |
|
- | |||||
| 3 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 4 | 8185130 | Outer Case |
|
- | |||||
| 6 | 8171807 | Tray, Glass |
|
- | |||||
| 7 | 8185129 | Rack, F/s |
|
- | |||||
| 8 | 4359782 | Turntable Support |
|
- | |||||
| 9 | 8185131 | Heater |
|
- | |||||
| 10 | 8185132 | Screw |
|
- | |||||
| 11 | 8183612 | Motor, Synchronous |
|
- | |||||
| 12 | 8185133 | Nut |
|
- | |||||
| 13 | 8185145 | Cover |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 4358192 | Screw |
|
- |
