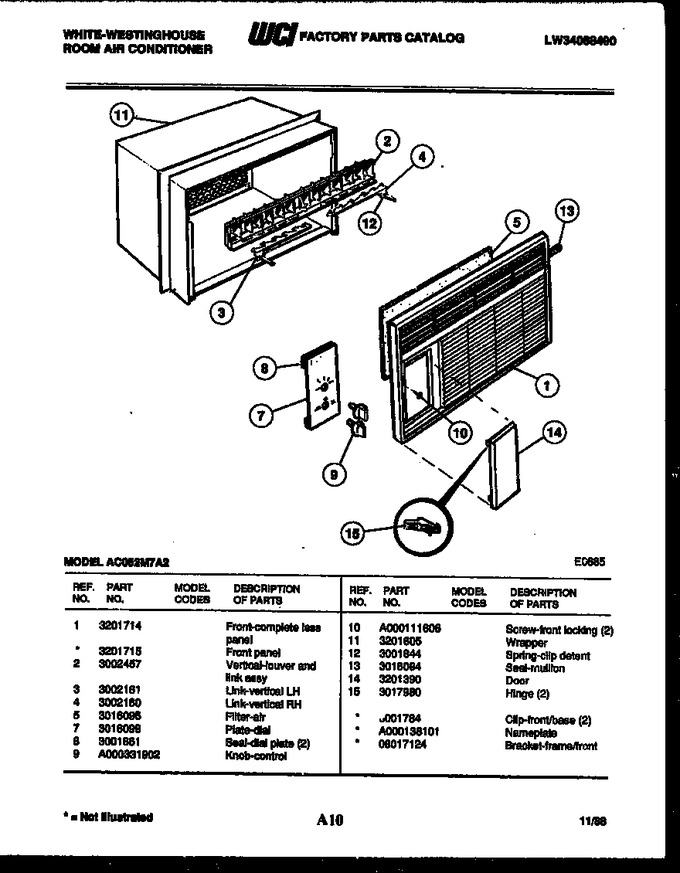

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201714 | Front-complete Less Panel |
|
- | |||||
| 2 | 3002457 | Vertical-louver And Link Assy |
|
- | |||||
| 3 | 3002161 | Link-vertical Lh |
|
- | |||||
| 4 | 3002160 | Link-vertical Rh |
|
- | |||||
| 5 | 3016095 | Filter-air |
|
- | |||||
| 7 | 3016098 | Plate-dial |
|
- | |||||
| 8 | 3001861 | Seal-dial Plate (2) |
|
- | |||||
| 9 | A000331902 | Knob-control |
|
- | |||||
| 10 | A000111606 | Screw-front Locking (2) |
|
- | |||||
| 11 | 3201605 | Wrapper |
|
- | |||||
| 12 | 3001844 | Spring-clip Detent |
|
- | |||||
| 13 | 3016094 | Seal-mullion |
|
- | |||||
| 14 | 3201390 | Door |
|
- | |||||
| 15 | 3017980 | Hinge (2) |
|
- | |||||
| *27141 | 3001784 | Clip-front/base (2) |
|
- | |||||
| *27143 | A000138101 | Nameplate |
|
- | |||||
| *27144 | 08017124 | Bracket-frame Front |
|
- | |||||
| 1A | 3201715 | Front Panel (non-illustrated) |
|
- |
