01 - Cover
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

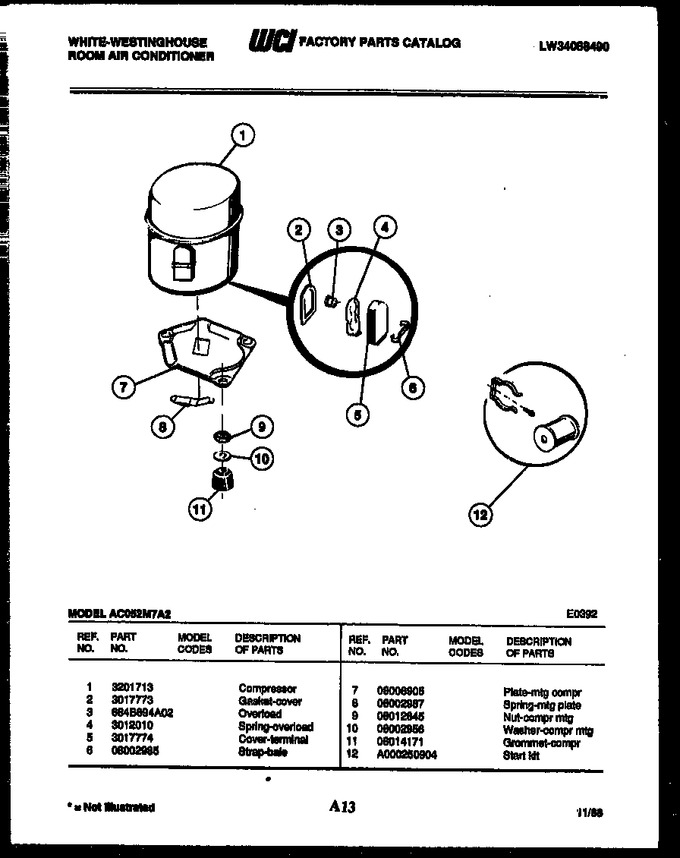

| 1 | 3201713 | Compressor |
|
- | |||||
| 2 | 3017773 | Gasket-cover |
|
- | |||||
| 3 | 684B694A02 | Overload |
|
- | |||||
| 4 | 3012010 | Spring-overload |
|
- | |||||
| 5 | 3017774 | Cover-terminal |
|
- | |||||
| 6 | 08002985 | Strap - Bale |
|
- | |||||
| 7 | 08006905 | Plate-mtg Compr |
|
- | |||||
| 8 | 08002987 | Spring-mtg Plate |
|
- | |||||
| 9 | 08012645 | Nut - Compr Mtg |
|
- | |||||
| 10 | 08002956 | Washer - Compr Mtg |
|
- | |||||
| 11 | 08014171 | Grommet-compr |
|
- | |||||
| 12 | A000250904 | Start Kit |
|
- |
