01 - Cover
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

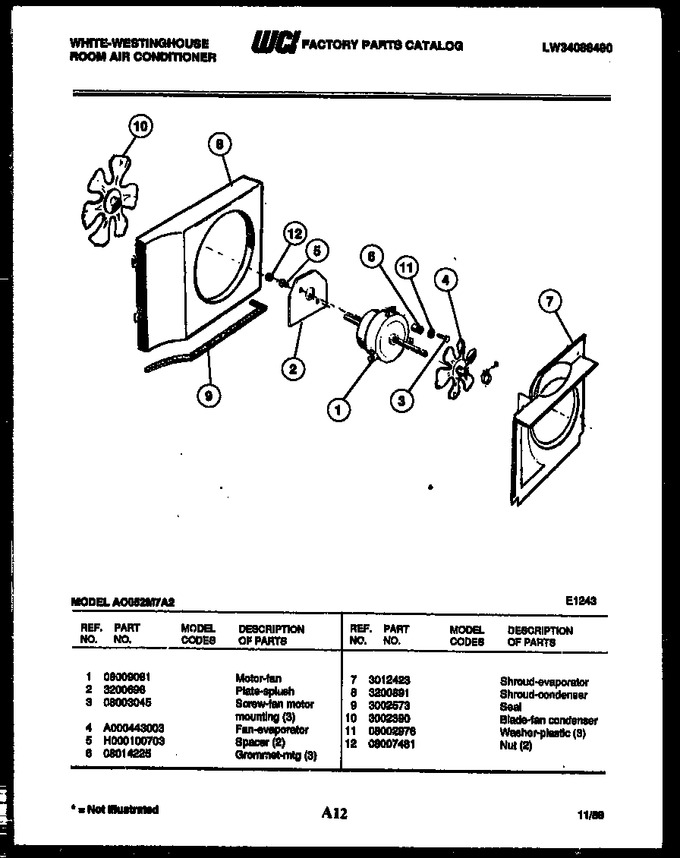

| 1 | 08009081 | Motor - Fan |
|
- | |||||
| 2 | 3200698 | Plate-splash |
|
- | |||||
| 3 | 08003045 | Screw-fan Motor Mounting (3) |
|
- | |||||
| 4 | A000443003 | Fan-evaporator |
|
- | |||||
| 5 | H000100703 | Spacer (2) |
|
- | |||||
| 6 | 08014225 | Grommet-mtg (3) |
|
- | |||||
| 7 | 3012423 | Shroud-evaporator |
|
- | |||||
| 8 | 3200891 | Shroud-condenser |
|
- | |||||
| 9 | 3002573 | Seal |
|
- | |||||
| 10 | 3002390 | Blade-fan Condenser |
|
- | |||||
| 11 | 08002976 | Washer-plastic (3) |
|
- | |||||
| 12 | 08007481 | Nut |
|
