Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158820 Cabinet Wrapper Appelez-nous -
2 4158084 Screw No.4x12mm (4) Appelez-nous -
3 4158071 Screw No.4x10mm (4) Appelez-nous -
4 4158821 Turntable Shaft Appelez-nous -
5 4158782 Motor, Turntable Appelez-nous -
6 4158823 Tray, Glass Appelez-nous -
8 4158079 Screw Special Order $ 6.69

11 4158787 Roller, Table (3) Appelez-nous -
14 4158824 Hinge, Upper Appelez-nous -
15 WP3400094 Screw (2)   (Replaces: 4158747) Special Order $ 7.14

18 4158822 Base, Turntable Appelez-nous -
19 4158790 Cap, Wave Guide Appelez-nous -
20 4158829 Cover, Turntable Motor Appelez-nous -
LIT4158665 Guide, Use And Care Appelez-nous -
LIT4158683 Tech Sheet Appelez-nous -
LIT4158815 Repair Parts List Appelez-nous -
LIT4158666 Cook Book Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

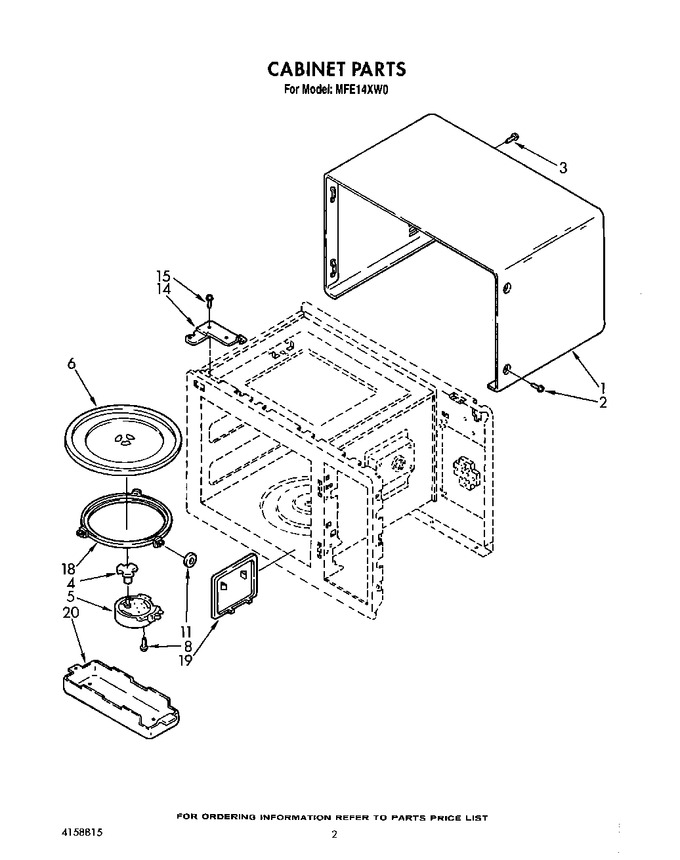

Diagram for MFE14XW0
