SELECT A DIAGRAM
02 - Cabinet, Lit/optional

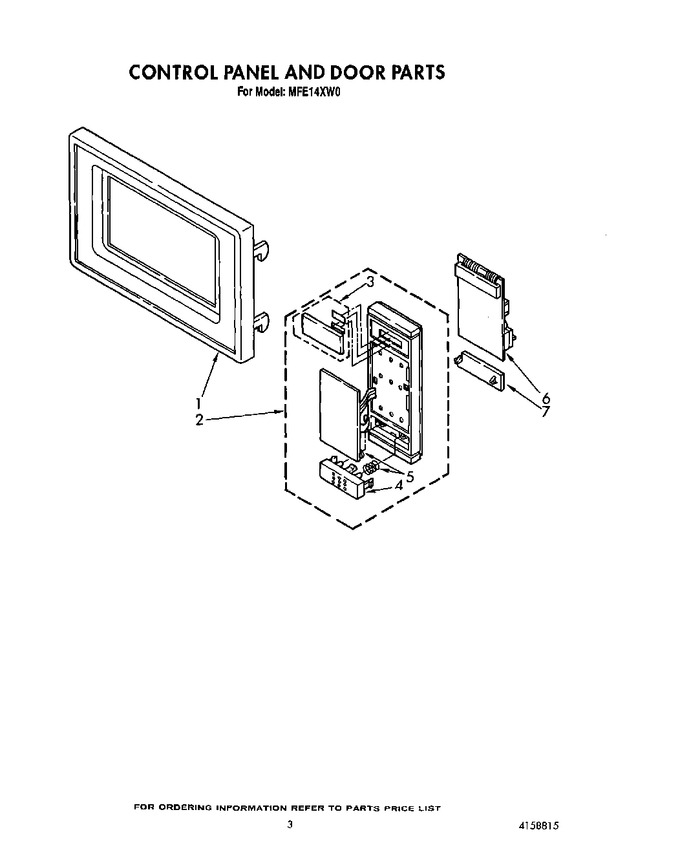

03 - Control Panel And Door
04 - Magnetron And Air Flow
05 - Baseplate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158818 | Door, Complete |
|
- | |||||
| 2 | 4158816 | Control Panel |
|
- | |||||
| 3 | 4158849 | Digitron Window |
|
- | |||||
| 4 | 4158819 | Button, Door |
|
- | |||||
| 5 | 4158178 | Spring, Door Button (2) |
|
$ 5.83 | |||||
| 6 | 4158817 | Microcomputor |
|
- | |||||
| 7 | 4158808 | Lever, Release |
|
- |
