SELECT A DIAGRAM

02 - Cabinet, Lit/optional


03 - Control Panel And Door


04 - Magnetron And Air Flow


05 - Baseplate

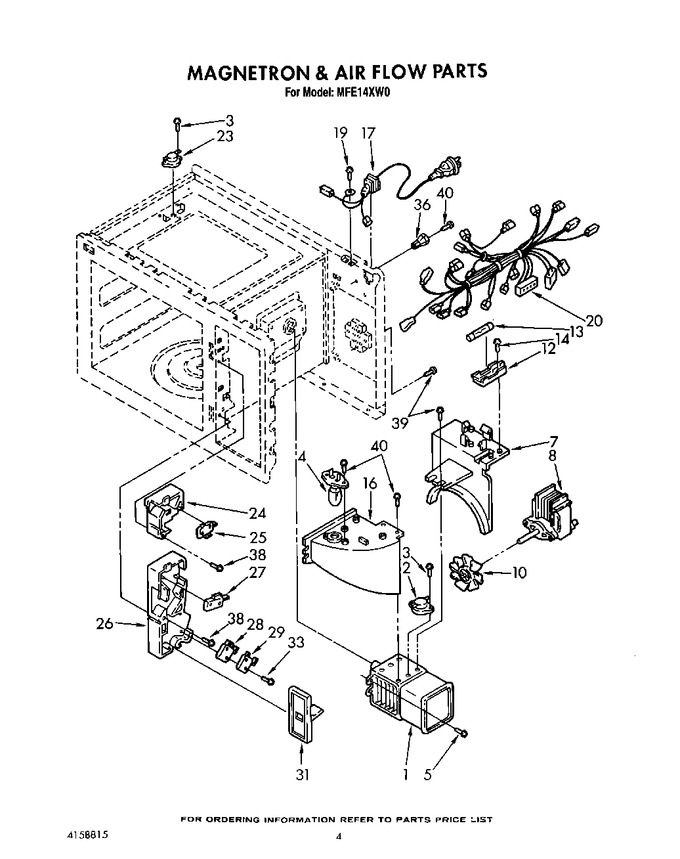

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158798		Magnetron		Appelez-nous	-
2	4158836		Thermostat		Appelez-nous	-
3	4158082		Screw No.3x8mm (4)		Appelez-nous	-
4	4158586		Baseless Lamp		Appelez-nous	-
5	WP3400094		Screw (4)   (Replaces: 4158747)				$ 7.14
7	4158833		Bracket, Fan		Appelez-nous	-
8	4158848		Motor, Fan		Appelez-nous	-
10	4158834		Fan		Appelez-nous	-
12	4158581		Holder, Fuse		Appelez-nous	-
13	4158636		Fuse		Appelez-nous	-
14	4158072		Screw No.4x8mm (1)		Appelez-nous	-
16	4158837		Air Duct		Appelez-nous	-
17	4158832		Cord, Power		Appelez-nous	-
19	4158071		Screw No.4 X 10 Mm		Appelez-nous	-
20	4158835		Wiring Harness		Appelez-nous	-
23	4158795		Thermostat, Oven		Appelez-nous	-
24	4158840		Latch, Upper		Appelez-nous	-
25	4392027		Micro Switch, Primary   (Replaces: 4158769)				$ 138.41
26	4158839		Latch, Lower		Appelez-nous	-
27	4392027		Micro Switch, Monitor   (Replaces: 4158771)				$ 138.41
28	4392027		Micro Switch, Secondary   (Replaces: 4158841)				$ 138.41
29	4392027		Micro Switch, Light   (Replaces: 4158838)				$ 138.41
31	4158155		Rod, Release		Appelez-nous	-
33	4158208		Screw No.3x30mm (1)		Appelez-nous	-
36	4339376		Spacer		Appelez-nous	-
38	4158307		Screw		Appelez-nous	-
39	4158194		Screw (2)		Appelez-nous	-
40	4158190		Screw		Appelez-nous	-
