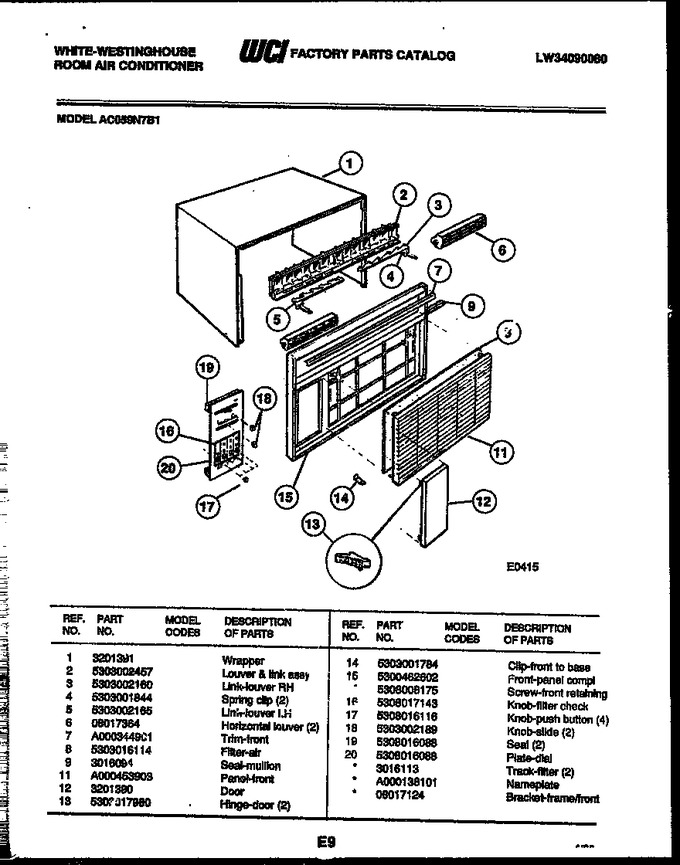

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201391 | Wrapper |
|
- | |||||
| 2 | 5303002457 | Louver & Link Assy |
|
- | |||||
| 3 | 5303002160 | Link-louver Rh |
|
- | |||||
| 4 | 5303001844 | Spring Clip (2) |
|
- | |||||
| 5 | 5303002165 | Link-louver Lh |
|
- | |||||
| 6 | 08017364 | Horizontal Louver (2) |
|
- | |||||
| 7 | A000344901 | Trim-front |
|
- | |||||
| 8 | 5303016114 | Filter-air |
|
- | |||||
| 9 | 3016094 | Seal-mullion |
|
- | |||||
| 11 | A000453903 | Panel-front |
|
- | |||||
| 12 | 3201390 | Door |
|
- | |||||
| 13 | 5303017980 | Hinge-door (2) |
|
- | |||||
| 14 | 5303001784 | Clip-front To Base |
|
- | |||||
| 15 | 5300462602 | Front-panel Compl |
|
- | |||||
| 16 | 5308017143 | Knob-filter Check |
|
- | |||||
| 17 | 5308016116 | Knob-push Button (4) |
|
- | |||||
| 18 | 5303002189 | Knob-slide (2) |
|
- | |||||
| 19 | 5308016088 | Seal (2) |
|
- | |||||
| 20 | 5308016088 | Plate-dial |
|
- | |||||
| *23778 | A000138101 | Nameplate |
|
- | |||||
| *23778 | 3016113 | Track-filter (2) |
|
- | |||||
| *23778 | 08017124 | Bracket-frame Front |
|
- | |||||
| 15A | 5308008175 | Screw-front Retaining (non-illustrated) |
|
- |
