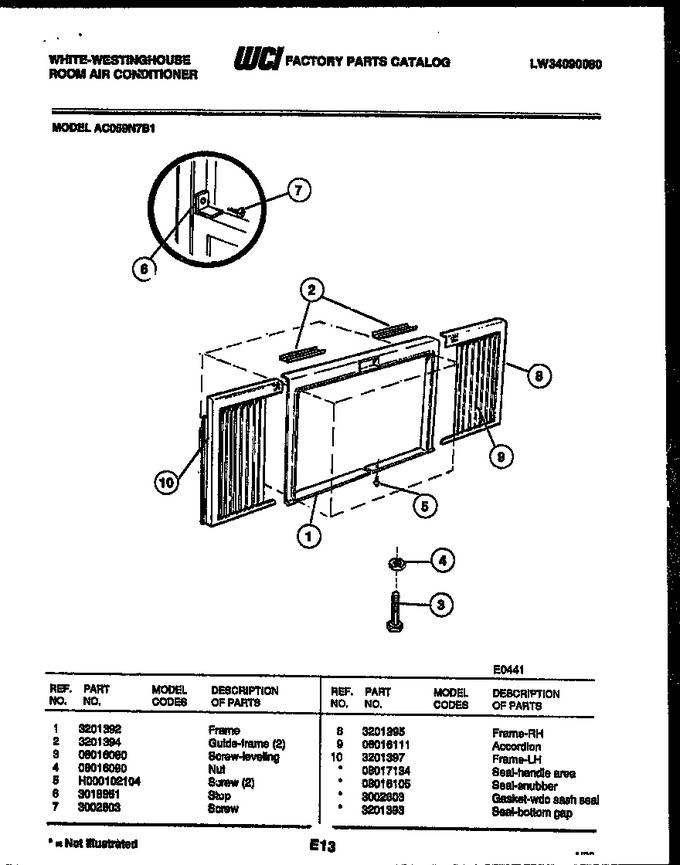

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201392 | Frame |
|
- | |||||
| 2 | 3201394 | Guide-frame (2) |
|
- | |||||
| 3 | 08016080 | Screw-leveling |
|
- | |||||
| 4 | 08016090 | Nut |
|
- | |||||
| 5 | H000102104 | Screw (2) |
|
- | |||||
| 6 | 3018951 | Stop |
|
- | |||||
| 7 | 3002803 | Screw |
|
- | |||||
| 8 | 3201395 | Frame-rh |
|
- | |||||
| 9 | 08016111 | Accordion |
|
- | |||||
| 10 | 3201397 | Frame-lh |
|
- | |||||
| *23788 | 08017134 | Seal-handle Area |
|
- | |||||
| *23788 | 3201393 | Seal-bottom Gap |
|
- | |||||
| *23788 | 3002603 | Gasket-wdo Sash Seal |
|
- | |||||
| *23788 | 08016105 | Seal-snubber |
|
- |
