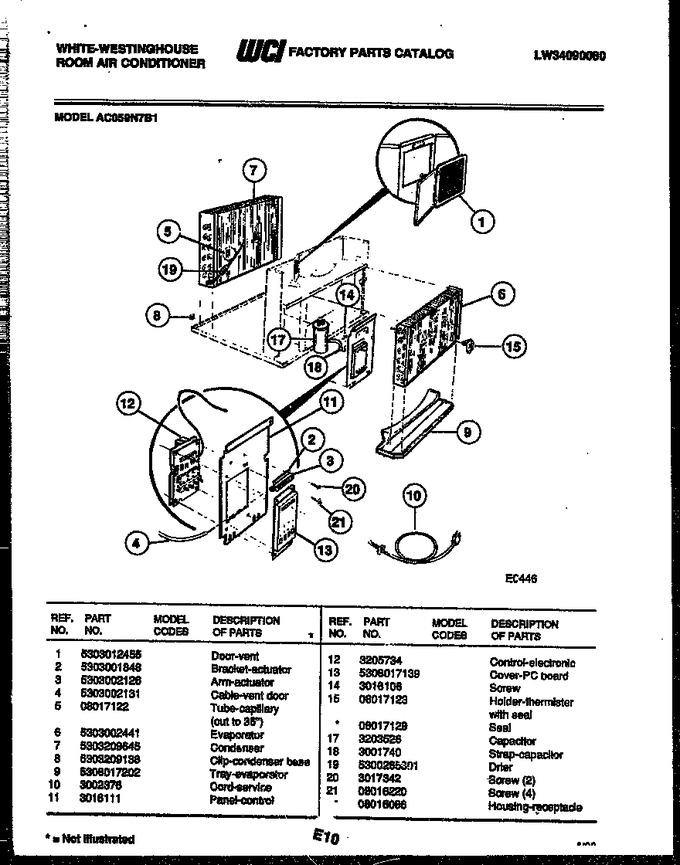

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303012455 | Door Vent |
|
- | |||||
| 2 | 5303001848 | Bracket-actuator |
|
- | |||||
| 3 | 5303002126 | Arm-actuator |
|
- | |||||
| 4 | 5303002131 | Cable-vent Door |
|
- | |||||
| 5 | 08017122 | Tube-capillary Cut To 35`` |
|
- | |||||
| 6 | 5303002441 | Evaporator |
|
- | |||||
| 7 | 5303209645 | Condenser |
|
- | |||||
| 8 | 5303209136 | Clip-condenser Base |
|
- | |||||
| 9 | 5308017202 | Tray-evaporator |
|
- | |||||
| 10 | 3002376 | Cord-service |
|
- | |||||
| 11 | 3016111 | Panel-control |
|
- | |||||
| 12 | 3205734 | Control-electronic |
|
- | |||||
| 13 | 5308017139 | Cover-pc Board |
|
- | |||||
| 14 | 3016106 | Screw |
|
- | |||||
| 15 | 08017123 | Holder-thermister With Seal |
|
- | |||||
| 17 | 3203526 | Capacitor |
|
- | |||||
| 18 | 3001740 | Strap-capacitor |
|
- | |||||
| 19 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 20 | 3017342 | Screw (2) |
|
- | |||||
| 21 | 08016220 | Screw (4) |
|
- | |||||
| *23781 | 08016086 | Housing-receptacle |
|
- | |||||
| 15A | 08017129 | Seal (non-illustrated) |
|
- |
