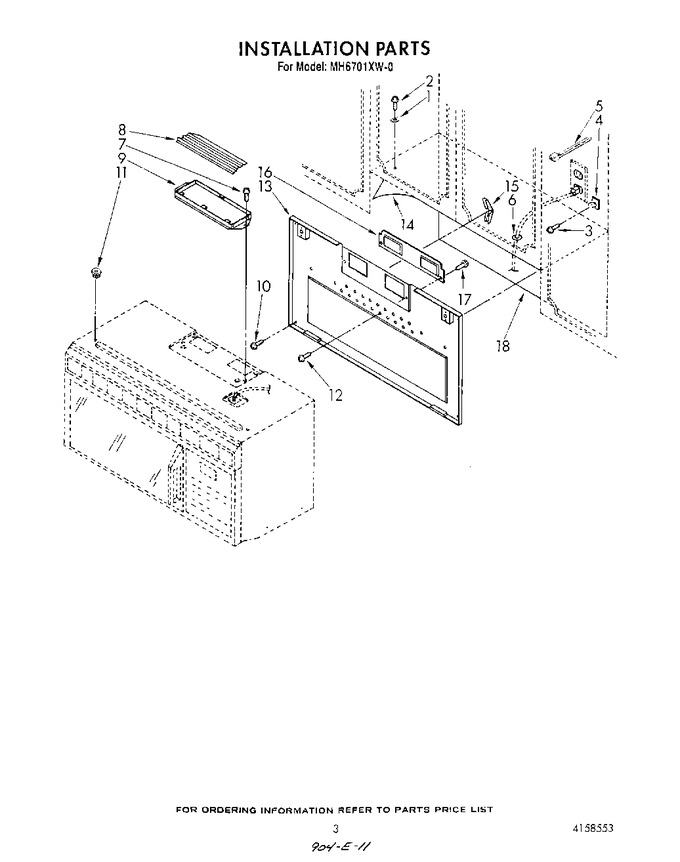

03 - Installation
04 - Cabinet
05 - Door , Wiring Harness , Lit/optional
06 - Control Panel
07 - Cavity And Stirrer
08 - Ventilation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158314 | Washer (2) |
|
$ 5.48 | |||||
| 2 | 4158315 | Cabinet Bolt (2) |
|
- | |||||
| 3 | 4158079 | Screw (2) |
|
$ 6.69 | |||||
| 4 | 4158316 | Retainer Holder (2) |
|
- | |||||
| 5 | WPW10339879 | Cord Retainer (2) (Replaces: 4158317) |
|
$ 7.11 | |||||
| 6 | 4158318 | Cord Bushing |
|
- | |||||
| 7 | 4158074 | Screw (2) |
|
- | |||||
| 8 | 4158319 | Exhaust Damper |
|
$ 28.91 | |||||
| 9 | 4158541 | Exhaust Adapter |
|
- | |||||
| 10 | WP8169704 | Screw (4) (Replaces: 4158321) |
|
Immediately | $ 10.07 | ||||
| 11 | 4158322 | Top Cabinet Nut (2) |
|
- | |||||
| 12 | 4158323 | Screw (4) |
|
$ 5.27 | |||||
| 13 | 4158324 | Mounting Plate Assy. |
|
- | |||||
| 14 | 4158325 | Top Cabinet Template |
|
- | |||||
| 15 | 4158326 | Nut, Toggle (4) |
|
$ 5.27 | |||||
| 16 | 4158327 | Vent Cover |
|
- | |||||
| 17 | 4158076 | Screw (2) |
|
- | |||||
| 18 | 4158328 | Wall Template |
|
- |
