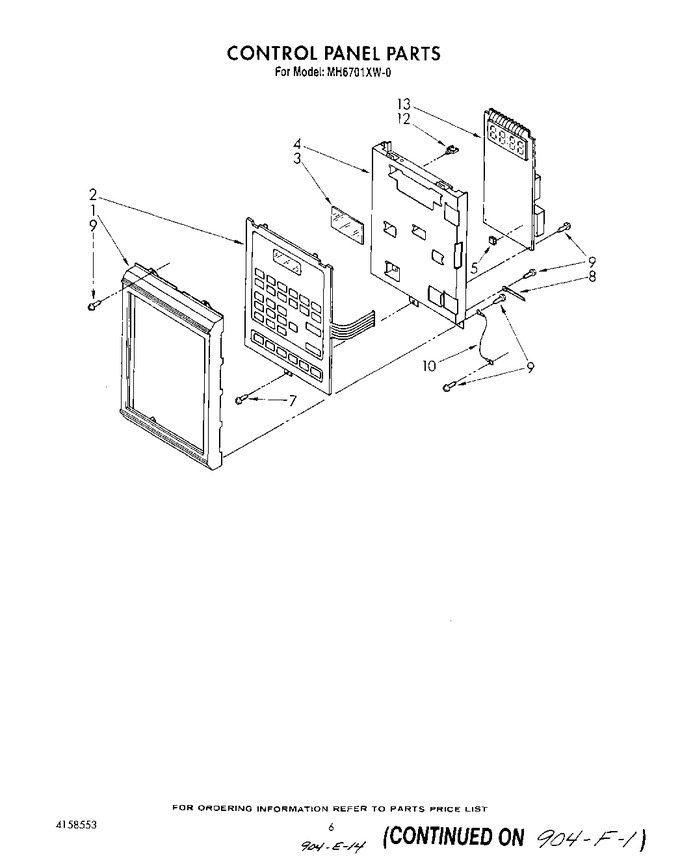

06 - Control Panel
07 - Cavity And Stirrer
08 - Ventilation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158557 | Control Panel |
|
- | |||||
| 2 | 4158558 | Switch, Membrane |
|
- | |||||
| 3 | 4158457 | Digitron Window |
|
- | |||||
| 4 | 4158409 | Control Bracket |
|
- | |||||
| 5 | 4158410 | Digitron Cushion (3) |
|
- | |||||
| 7 | 4158082 | Screw |
|
- | |||||
| 8 | 4158563 | Lug (2) |
|
- | |||||
| 9 | 4158076 | Screw (7) |
|
- | |||||
| 10 | 4158214 | Lead Wire |
|
- | |||||
| 12 | 4158413 | Holder, Wire |
|
- | |||||
| 13 | 4158414 | Microcomputer |
|
- |
