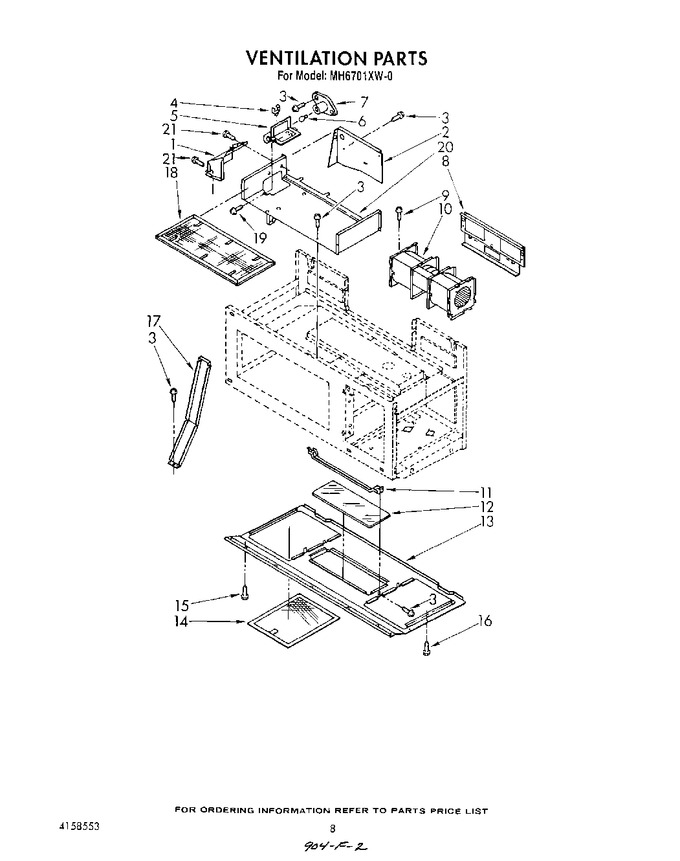

08 - Ventilation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158340		Lamp Box		Appelez-nous	-
2	4158341		Vent Duct		Appelez-nous	-
3	4158076		Screw (12)		Appelez-nous	-
4	4158267		Wire Holder		Appelez-nous	-
5	4158343		Oven Lamp Cover Assy.		Appelez-nous	-
6	8206232A		Oven Lamp (2) (30 Watt)   (Replaces: 4158344)			Immediately	$ 6.61
7	4158364		Lamp Holder		Appelez-nous	-
8	4158346		Front Vent Guide Assy.		Appelez-nous	-
9	4158347		Screw (2)		Appelez-nous	-
10	4158348		Ventilation Motor Assy.		Appelez-nous	-
11	4158349		Lamp Glass Mounting (2)		Appelez-nous	-
12	4158350		Cooktop Lamp Glass		Appelez-nous	-
13	4158559		Base Plate		Appelez-nous	-
14	4158352		Air Filter (2)		Appelez-nous	-
15	4158353		Screw (3)		Appelez-nous	-
16	4158308		Screw (2)		Appelez-nous	-
17	4158354		Air Guide		Appelez-nous	-
18	4158355		Charcoal Filter Assy.		Appelez-nous	-
19	4158084		Screw		Appelez-nous	-
20	4158356		Vent Duct		Appelez-nous	-
21	4158072		Screw (2)		Appelez-nous	-
