Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158314 Washer (2) Special Order $ 5.48

2 4158315 Cabinet Bolt (2) Appelez-nous -
3 WP98008545 Screw (2)   (Replaces: 4358010) Special Order $ 15.94

4 8534021 Retainer Holder (2)   (Replaces: 4358011) Special Order $ 7.59

6 4358012 Cord Bushing Appelez-nous -
7 4158079 Screw (2) Special Order $ 6.69

8 4158319 Exhaust Damper Special Order $ 28.91

9 4158541 Exhaust Adapter Appelez-nous -
10 WP8169704 Bolt (4)   (Replaces: 4158321) In-Stock Immediately $ 10.07

11 4158322 Top Cabinet Nut (2) Appelez-nous -
12 4158323 Screw (4) Special Order $ 5.27

13 4358014 Mounting Plate Assy. Appelez-nous -
14 4358001 Top Cabinet Template Appelez-nous -
15 4158326 Toggle Wing (4) Special Order $ 5.27

18 4158328 Wall Template Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

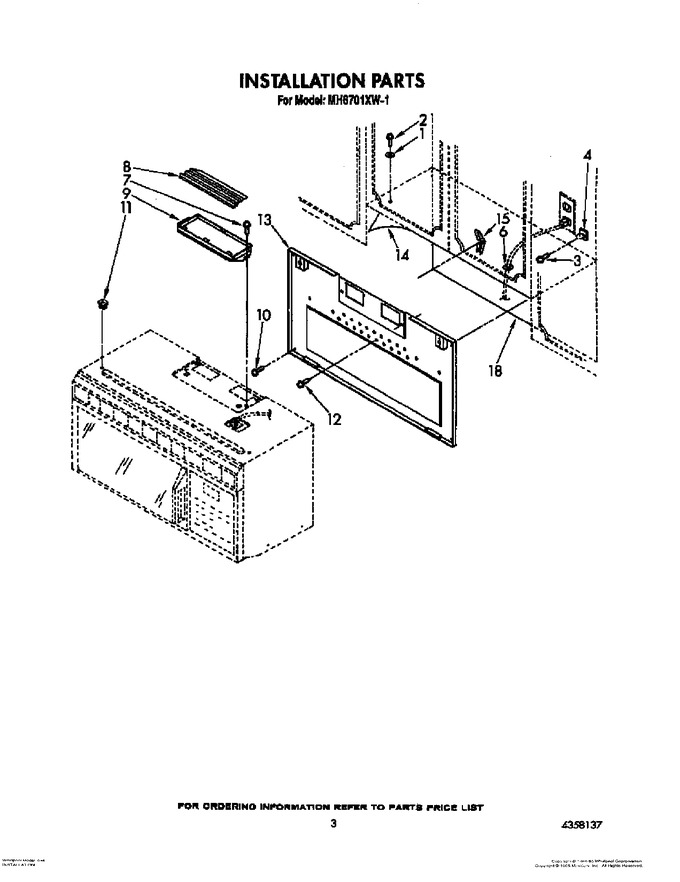

Diagram for MH6701XW1
