02 - Magnetron And Air Flow


03 - Installation


04 - Cabinet


05 - Door, Wiring Harness, Lit/optional


06 - Control Panel


07 - Cavity And Stirrer


08 - Ventilation

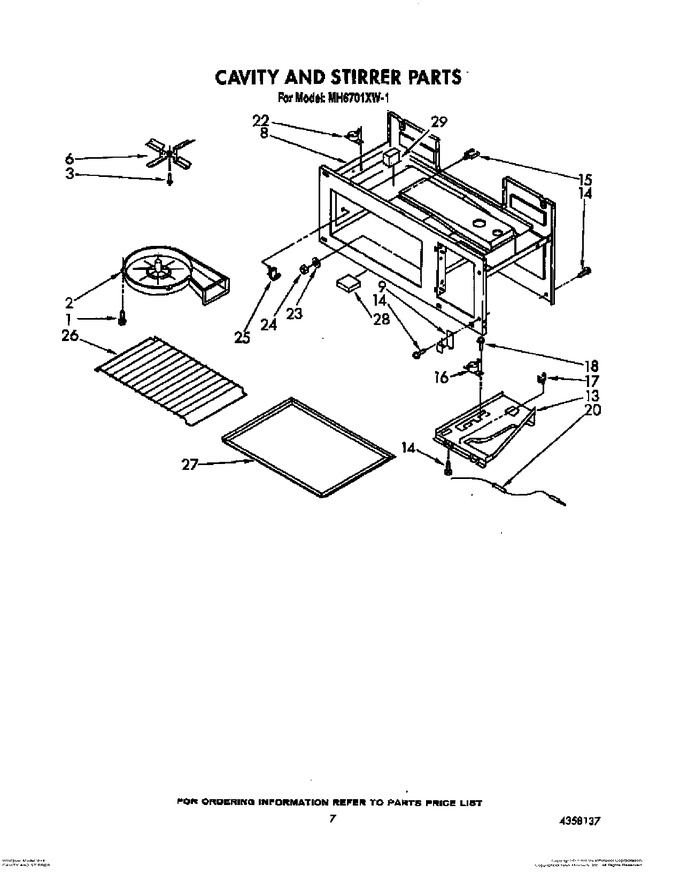

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196557		Screw (9)   (Replaces: 4358045)			Immediately	$ 7.16
2	4358044		Stirrer Fan Cover		Appelez-nous	-
3	4158623		Stirrer Fan Shaft		Appelez-nous	-
6	4358043		Stirrer Fan Assy.		Appelez-nous	-
9	4358048		Cntl. Hinge Assy. (2)		Appelez-nous	-
13	4358046		Bottom Plate		Appelez-nous	-
14	4158071		Screw (7)		Appelez-nous	-
15	4158267		Wire Holder (4)		Appelez-nous	-
16	4158368		Base Thermostat		Appelez-nous	-
17	4158369		Wire Holder (2)		Appelez-nous	-
18	4158082		Screw (2)		Appelez-nous	-
20	4158371		Temp Probe		Appelez-nous	-
22	4158485		Thermostat, Oven		Appelez-nous	-
23	4158213		Washer		Appelez-nous	-
24	4158212		Nut		Appelez-nous	-
25	4358047		Rack Support (4)		Appelez-nous	-
26	4158373		Rack Assy.		Appelez-nous	-
27	4158731		Tray, Glass		Appelez-nous	-
28	4358049		Seal, Cavity (bottom)		Appelez-nous	-
29	4358050		Seal, Cavity (top)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
