SELECT A DIAGRAM

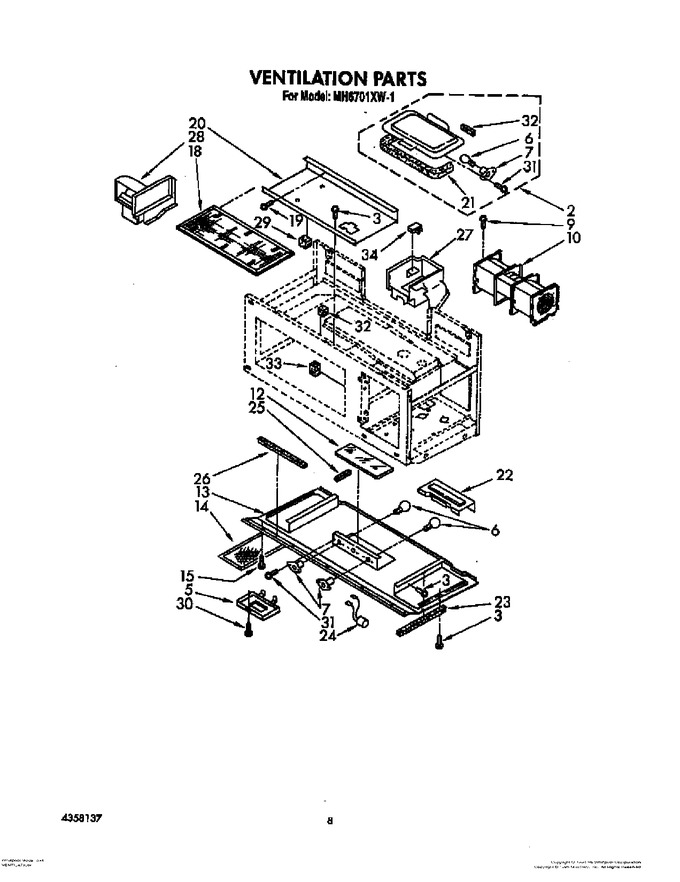

02 - Magnetron And Air Flow


03 - Installation


04 - Cabinet


05 - Door, Wiring Harness, Lit/optional


06 - Control Panel


07 - Cavity And Stirrer


08 - Ventilation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4358023		Lamp Asm.		Appelez-nous	-
3	4158076		Screw		Appelez-nous	-
5	4358132		Oven Lamp Cover		Appelez-nous	-
6	8206232A		Oven Lamp (30 Watt)   (Replaces: 4158344)			Immediately	$ 6.61
7	4158364		Lamp Holder		Appelez-nous	-
9	4158347		Screw (2)		Appelez-nous	-
10	4358024		Ventilation Motor Asm.		Appelez-nous	-
12	4358033		Cooktop Lamp Glass		Appelez-nous	-
13	4358131		Base Plate		Appelez-nous	-
14	4358030		Air Filter (2)				$ 16.66
15	4158353		Screw (3)		Appelez-nous	-
18	4358003		Charcoal Filter Assy.		Appelez-nous	-
19	4158190		Screw		Appelez-nous	-
20	4358038		Air Path (front)		Appelez-nous	-
21	4358022		Seal		Appelez-nous	-
22	4358026		Box, Lamp		Appelez-nous	-
23	4358028		Seal		Appelez-nous	-
24	4358032		Wiring Harness		Appelez-nous	-
25	4358034		Seal, Lamp		Appelez-nous	-
26	4358035		Seal, Base		Appelez-nous	-
27	4358029		Duct, R.s.		Appelez-nous	-
28	4358036		Duct, L.s.		Appelez-nous	-
29	4358039		Cushion		Appelez-nous	-
30	4158308		Screw		Appelez-nous	-
31	4158071		Screw		Appelez-nous	-
32	4358041		Seal, Lamp		Appelez-nous	-
33	4358042		Seal, Damper		Appelez-nous	-
34	4158376		Condenser Motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
