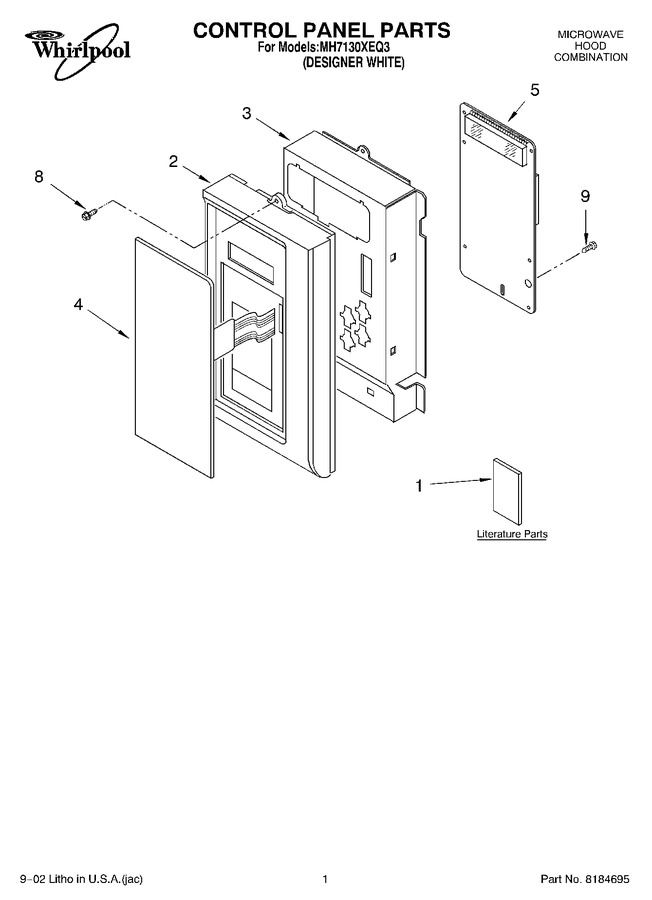

01 - Control Panel, Literature
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4359622 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT4359455 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT4359414 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT4359456 | Literature Parts (guide, Cooking) |
|
- | |||||
| 2 | 4359479 | Control Panel |
|
- | |||||
| 3 | 4359481 | Bracket, Control |
|
- | |||||
| 4 | 4359612 | Key Membrane |
|
- | |||||
| 5 | 8172053 | Microcomputer |
|
- | |||||
| 8 | 4358762 | Screw |
|
$ 7.10 | |||||
| 9 | 4358380 | Screw |
|
$ 11.75 |
