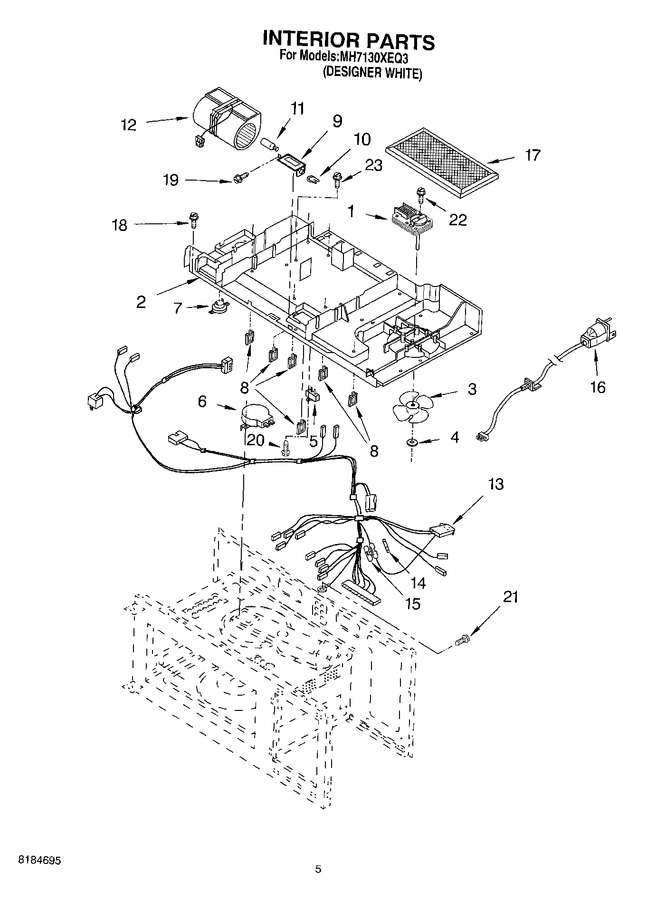

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359511		Motor, Fan		Appelez-nous	-
2	4359513		Air Duct		Appelez-nous	-
3	4158758		Blower Fan		Appelez-nous	-
4	4358055		Push Nut				$ 4.83
5	4359514		Fuse		Appelez-nous	-
6	4359515		Motor, Synchronous		Appelez-nous	-
7	4158368		Thermostat		Appelez-nous	-
8	4158369		Holder, Wire		Appelez-nous	-
9	4359964		Cover		Appelez-nous	-
10	4359518		Holder, Lamp		Appelez-nous	-
11	8206232A		Oven Lamp   (Replaces: 4359625)			Immediately	$ 6.61
12	4359519		Motor, Ventilation		Appelez-nous	-
13	8184929		Lead, Wire		Appelez-nous	-
14	WP8183507		Fuse   (Replaces: 8183507)				$ 18.33
15	8183578		Holder, Fuse		Appelez-nous	-
16	4359522		Power Cord		Appelez-nous	-
17	4359331		Charcoal Filter				$ 15.29
18	4358381		Screw		Appelez-nous	-
19	4358192		Screw		Appelez-nous	-
20	4358883		Screw		Appelez-nous	-
21	4344826		Screw   (Replaces: 4358489)				$ 14.31
22	4359512		Screw		Appelez-nous	-
23	4158311		Filler Kit		Appelez-nous	-
23	4344826		Screw   (Replaces: 8171883)				$ 14.31
23	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
23	4158491		Installation Hardware		Appelez-nous	-
