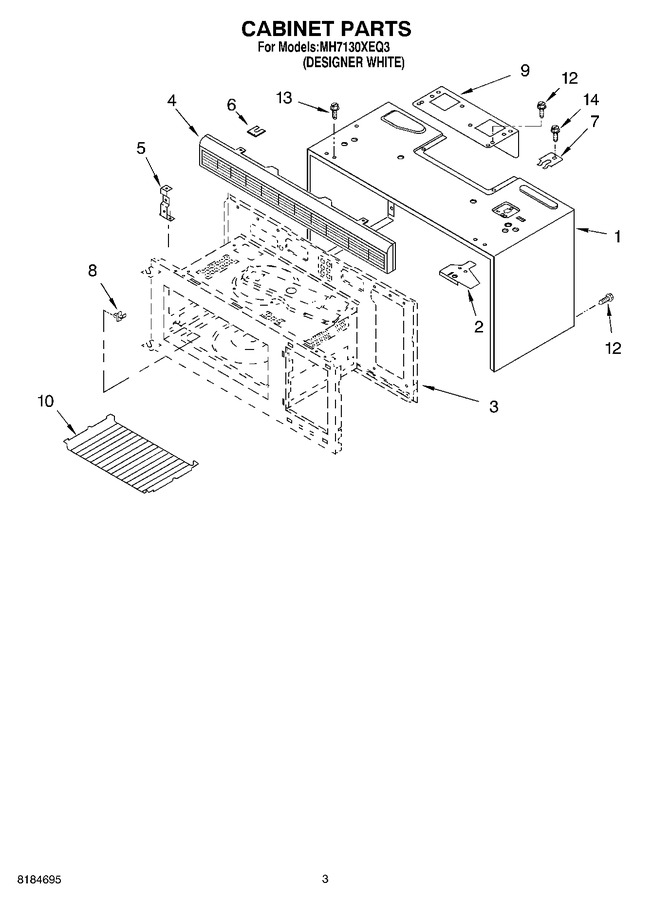

03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359487 | Outer Case |
|
- | |||||
| 2 | 4358928 | Mounting Bracket |
|
- | |||||
| 4 | 8184836 | Grille Vent |
|
- | |||||
| 5 | 4358759 | Bracket, Front |
|
- | |||||
| 6 | 4358816 | Bracket, Grille |
|
- | |||||
| 7 | 4359616 | Cover, Power Cord |
|
- | |||||
| 8 | 4358383 | Shelf Holder |
|
- | |||||
| 9 | 4359377 | Plate, Mount |
|
- | |||||
| 10 | 8184928 | Rack, Grill |
|
- | |||||
| 12 | 4358381 | Screw |
|
- | |||||
| 13 | 4359009 | Screw |
|
- | |||||
| 14 | 4358192 | Screw |
|
- |
