02 - Cabinet

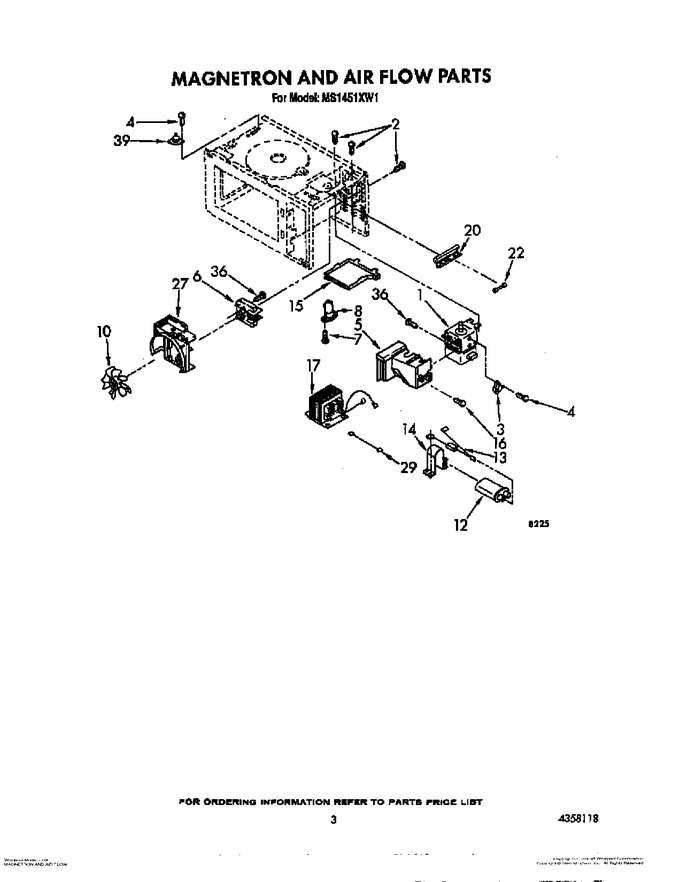

03 - Magnetron And Air Flow


04 - Oven Door And Latch


05 - Control Panel


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158755		Magnetron		Appelez-nous	-
2	4158791		Screw, 4 X 8 Mm		Appelez-nous	-
3	4358117		Thermostat, Magnetron		Appelez-nous	-
4	4158082		Screw, 3 X 8 Mm		Appelez-nous	-
5	4158759		Duct, Air		Appelez-nous	-
6	4158756		Motor, Fan		Appelez-nous	-
7	4158079		Screw, 4 X 8 Mm				$ 6.69
8	4158586		Baseless Lamp		Appelez-nous	-
10	4158758		Fan		Appelez-nous	-
12	4158752		Capacitor		Appelez-nous	-
13	4158298		Diode Cable		Appelez-nous	-
14	4158753		Bracket, Capacitor		Appelez-nous	-
15	4158766		Plate, Base		Appelez-nous	-
16	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
17	4158749		Transformer		Appelez-nous	-
20	4158761		Holder, Fuse		Appelez-nous	-
22	4158378		Fuse		Appelez-nous	-
27	4158757		Cover, Fan		Appelez-nous	-
29	4158750		Lead, High Voltage		Appelez-nous	-
36	4158189		Screw, 4 X 6 Mm		Appelez-nous	-
39	4158765		Thermostat, Oven		Appelez-nous	-
