Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158767 Latch Board Appelez-nous -
3 4158307 Screw Appelez-nous -
7 4358114 Pin, Protector Appelez-nous -
8 4158740 Hinge Plate, Lower Appelez-nous -
9 4158071 Screw Appelez-nous -
10 WP3400094 Screw   (Replaces: 4158747) Special Order $ 7.14

11 4158738 Lever Switch Appelez-nous -
12 4392027 Switch, Secondary   (Replaces: 4158952) Special Order $ 138.41

13 4158851 Door, Complete Appelez-nous -
14 4158739 Hinge Plate, Upper Appelez-nous -
17 4392027 Switch, Primary   (Replaces: 4158769) Special Order $ 138.41

18 4158117 Washer Appelez-nous -
19 4392027 Switch, Monitor   (Replaces: 4158771) Special Order $ 138.41


    View Diagram in Separate Window     Print Icon   Print Part List

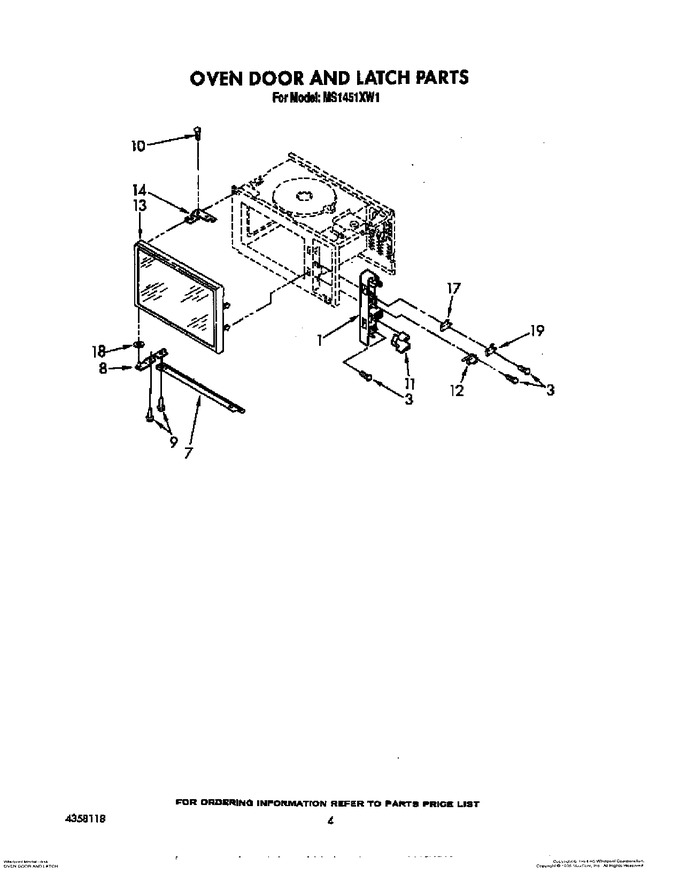

Diagram for MS1451XW1
