New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

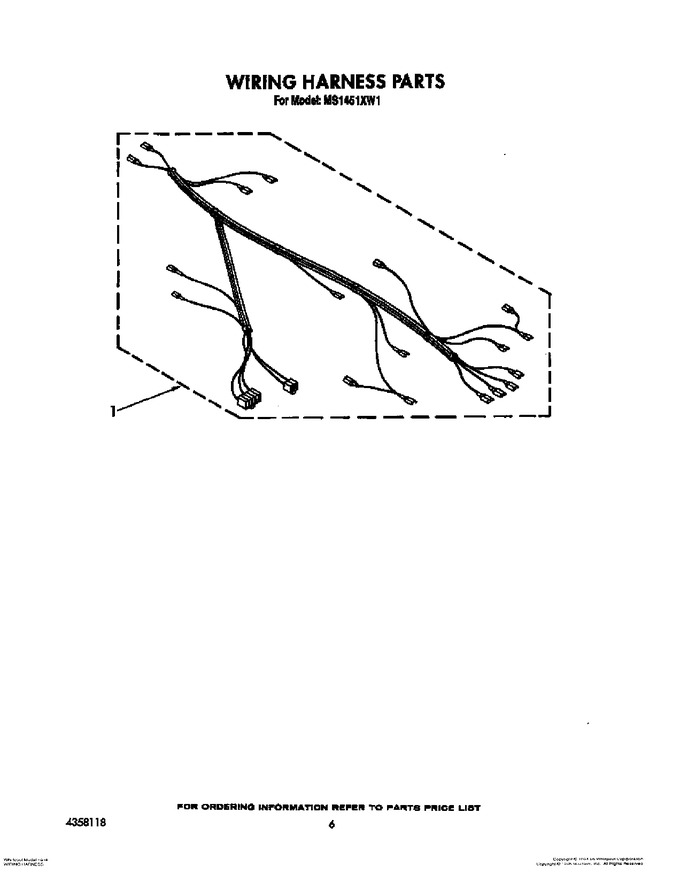

| 1 | 4358116 | Harness, Wiring (main) |
|
- | |||||
| 4158695 | Installation Instructions For |
|
- | ||||||
| LIT4158687 | Guide, Use & Care |
|
- | ||||||
| 4158693 | Under The Cabinet Mounting Kit |
|
- | ||||||
| 4158698 | Wall Template |
|
- | ||||||
| LIT4158688 | Tech Sheet |
|
- | ||||||
| LIT4158728 | U.t.c. Card |
|
- | ||||||
| LIT4358118 | List, Repair Parts |
|
- | ||||||
| WP261869 | Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 832899 | Cord Brown (1/2 Oz.) |
|
- | ||||||
| 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 |
