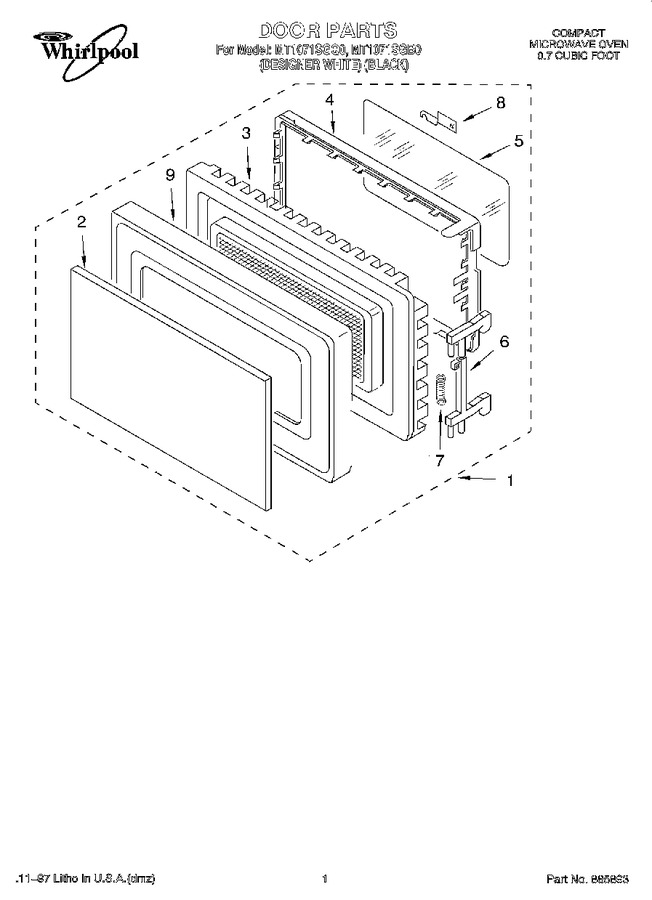

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359699 | Door Assembly (white Model) |
|
- | |||||
| 1 | 4359700 | Door Assembly (black Model) |
|
- | |||||
| 2 | 4359701 | Front Screen |
|
- | |||||
| 3 | 4359702 | Door Frame Assembly (white Model) |
|
- | |||||
| 3 | 4359703 | Door Frame Assembly (black Model) |
|
- | |||||
| 4 | 4359704 | Choke Cover |
|
- | |||||
| 5 | 4359705 | Tape, Seal |
|
- | |||||
| 6 | 4359706 | Latch |
|
- | |||||
| 7 | 4359707 | Spring, Latch |
|
- | |||||
| 8 | 4359710 | Cap |
|
- | |||||
| 9 | 4359708 | Panel, Door (white Model) |
|
- | |||||
| 9 | 4359709 | Panel, Door (black Model) |
|
- |
