SELECT A DIAGRAM
01 - Door
02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior, Literature

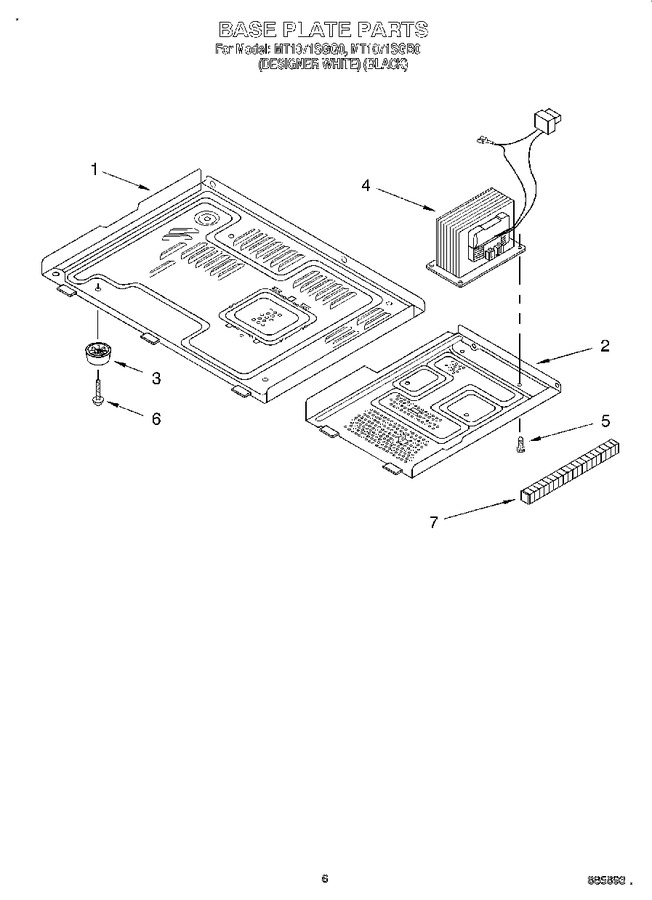

06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359737 | Base Plate (l) |
|
- | |||||
| 2 | 4359732 | Base Plate (r) |
|
- | |||||
| 3 | 4358487 | Leg |
|
- | |||||
| 4 | 4359733 | Transformer |
|
- | |||||
| 5 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 6 | 4358381 | Screw |
|
- | |||||
| 7 | 4359738 | Cushion |
|
- | |||||
| 7 | 4359660 | Utc Kit |
|
- | |||||
| 7 | 4359642 | Trim Kit (mk1074xgq) |
|
- | |||||
| 7 | 4359643 | Trim Kit (mk1074xgb) |
|
- |
