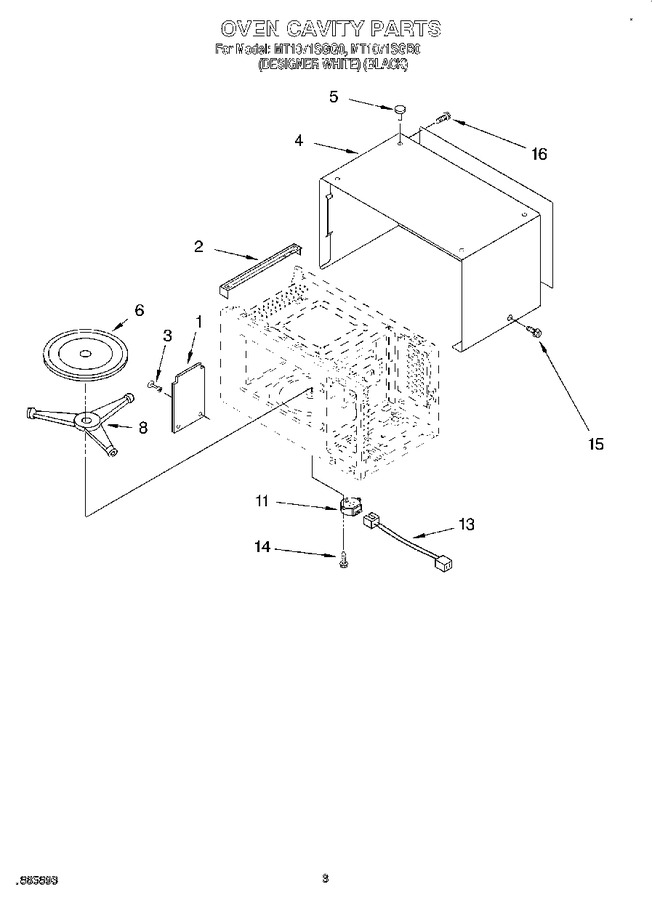

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359721 | Canopy |
|
- | |||||
| 2 | 4359726 | Utc Bracket |
|
- | |||||
| 3 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 4 | 4359740 | Outer Case (black Model) |
|
- | |||||
| 4 | 4359739 | Outer Case (white Model) |
|
- | |||||
| 5 | 4358857 | Mounting Cap (black Model (4)) |
|
$ 6.11 | |||||
| 5 | 4158748 | Mounting Cap (white Model (4)) |
|
- | |||||
| 6 | 4359722 | Tray, Glass |
|
- | |||||
| 8 | 4359723 | Turntable Support |
|
- | |||||
| 11 | 4359724 | Motor, Synchronous |
|
- | |||||
| 13 | 4359725 | Lead Wire Assy. |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 4358192 | Screw |
|
- |
