SELECT A DIAGRAM

01 - Door, Literature

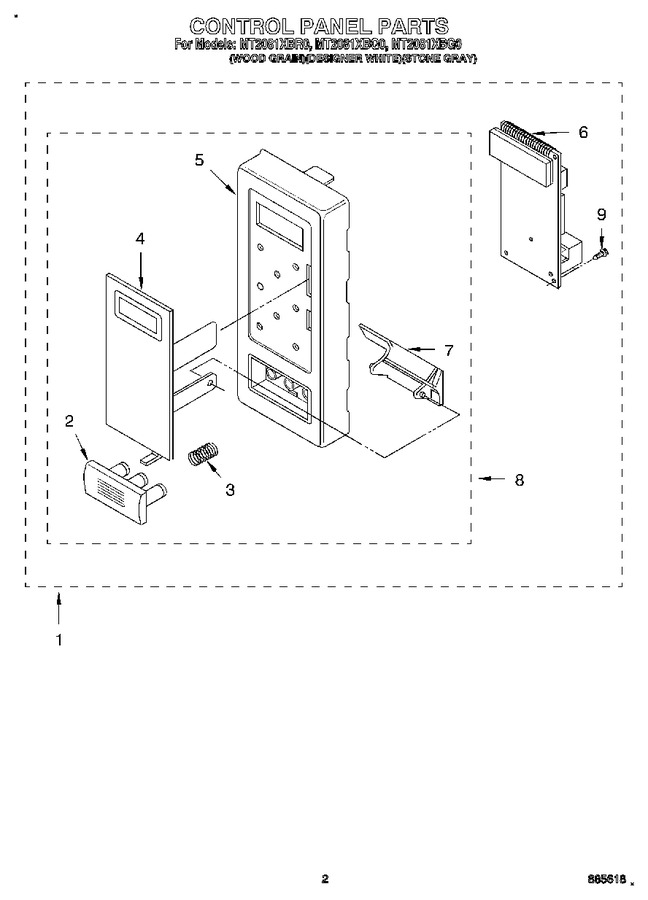

02 - Control Panel


03 - Oven Cavity


04 - Latch Board


05 - Oven Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4358670		Button, Release (wood Grain & Gray)		Appelez-nous	-
2	4358610		Button, Release (white Model)		Appelez-nous	-
3	4158178		Spring, Button				$ 5.83
4	4358671		Membrane, Key (wood Grain & Gray)		Appelez-nous	-
4	4358612		Membrane, Key (white Model)		Appelez-nous	-
5	4358672		Panel, Control (wood Grain & Gray)		Appelez-nous	-
5	4358613		Panel, Control (white Model)		Appelez-nous	-
6	4358614		P.c.b. Sub Ass`y		Appelez-nous	-
7	4358615		Lever, Release		Appelez-nous	-
8	4358673		Controller Sub Assembly (wood Grain & Gray)		Appelez-nous	-
8	4358616		Controller Sub Assembly (white Model)		Appelez-nous	-
9	4358451		Screw (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
