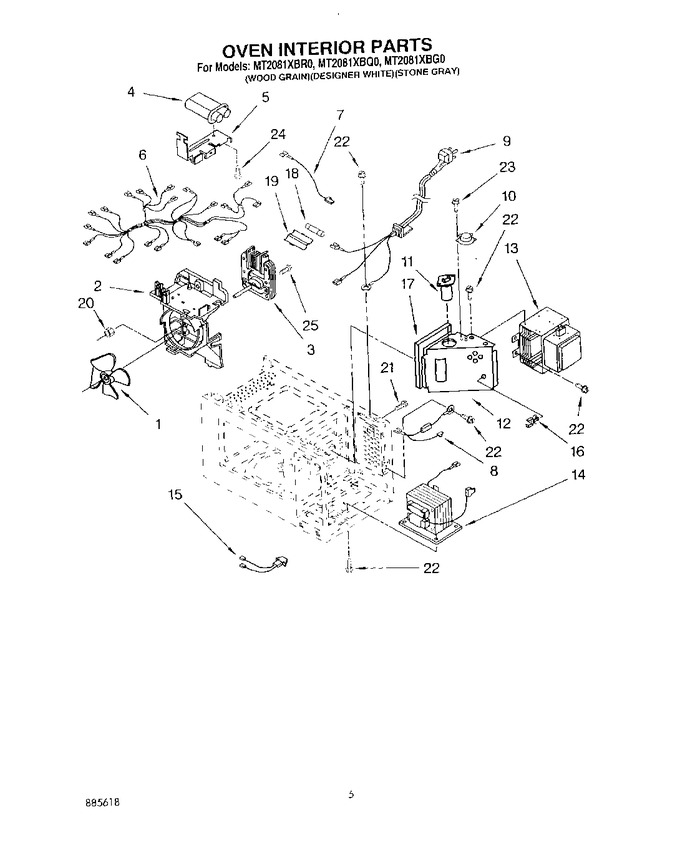

05 - Oven Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158758		Propeller		Appelez-nous	-
2	4359158		Guide, Suction		Appelez-nous	-
3	4358643		Motor, Fan		Appelez-nous	-
4	4358644		H.v. Capacitor		Appelez-nous	-
5	4359161		H.v.c. Bracket		Appelez-nous	-
6	4358646		Leadwire Assembly		Appelez-nous	-
7	4158827		H.v. Cable Ass`y		Appelez-nous	-
8	4158897		H.v. Diode Cable Assembly		Appelez-nous	-
9	4358653		Cord, Power		Appelez-nous	-
10	4358650		Thermostat		Appelez-nous	-
11	4358651		Lamp, Baseless		Appelez-nous	-
12	4358652		Duct, Air		Appelez-nous	-
13	4158798		Magnetron		Appelez-nous	-
14	4358654		Transformer		Appelez-nous	-
15	4358655		Leadwire Ass`y		Appelez-nous	-
16	4158413		Holder, Wire		Appelez-nous	-
17	4358657		Cushion		Appelez-nous	-
18	4358263		Fuse		Appelez-nous	-
19	4358659		Cap, Fuse		Appelez-nous	-
20	4358475		Nut (2)		Appelez-nous	-
21	4358051		Screw (2)		Appelez-nous	-
22	4344826		Screw (13)   (Replaces: 4358489)				$ 14.31
23	4358376		Screw		Appelez-nous	-
24	4358381		Screw		Appelez-nous	-
25	4358190		Screw (2)		Appelez-nous	-
