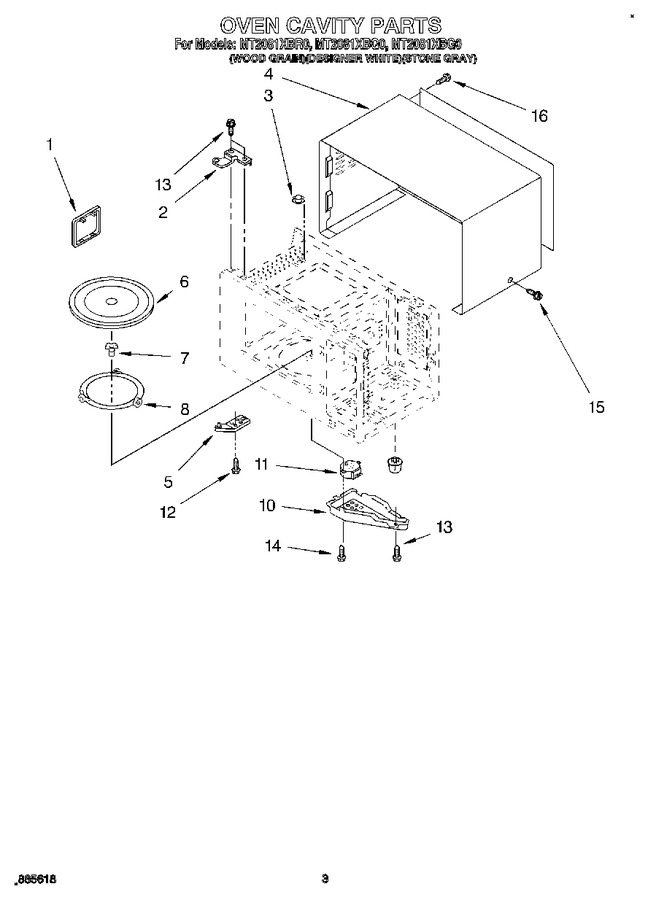

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358618		Canopy (wave Guide)		Appelez-nous	-
2	4358619		Plate, Hinge		Appelez-nous	-
3	4358620		Thermostat		Appelez-nous	-
4	4359099		Case, Outer (gray Model)		Appelez-nous	-
4	4358621		Case, Outer (white Model)		Appelez-nous	-
4	4358674		Case, Outer (wood Grain)		Appelez-nous	-
5	4358622		Plate, Hinge		Appelez-nous	-
6	4158813		Tray, Glass		Appelez-nous	-
7	4158786		Shaft, Turntable		Appelez-nous	-
8	4358625		Rotating Ring Assembly		Appelez-nous	-
9	4358626		Leg (4)		Appelez-nous	-
10	4358627		Cover, Motor		Appelez-nous	-
11	4358628		Motor, Synchronous		Appelez-nous	-
12	4358051		Screw (3)		Appelez-nous	-
13	4344826		Screw (3)   (Replaces: 4358489)				$ 14.31
14	4358188		Screw (2)		Appelez-nous	-
15	4158084		Screw (wood Grain)		Appelez-nous	-
15	W11245710		Screw (white Model)   (Replaces: 4358362)			Immediately	$ 12.65
16	4358192		Screw (4)		Appelez-nous	-
