SELECT A DIAGRAM
01 - Cabinet
02 - Magnetron And Air Flow

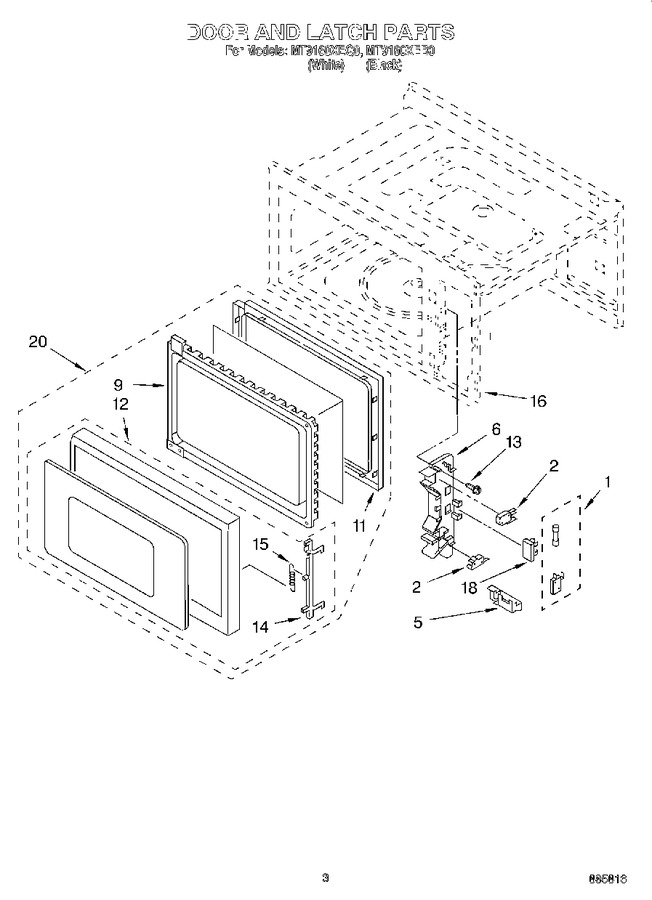

03 - Door And Latch
04 - Control Panel
05 - Turn Table, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313105 | Switch And Fuse Assy. |
|
- | |||||
| 2 | 4392027 | Secondary And Door Switch (Replaces: 4313055) |
|
$ 138.41 | |||||
| 5 | 4313118 | Latch Lever |
|
- | |||||
| 6 | 4313116 | Latch Hook |
|
- | |||||
| 9 | 4313163 | Door Panel |
|
- | |||||
| 9 | 4174826 | Screw |
|
- | |||||
| 11 | 4313699 | Choke Cover (white) |
|
- | |||||
| 11 | 4313164 | Choke Cover (black) |
|
- | |||||
| 12 | 4313170 | Frame, Door (white Model) |
|
- | |||||
| 12 | 4313162 | Frame, Door (black Model) |
|
- | |||||
| 13 | W11233072 | Screw, Latch Hook Mounting (Replaces: 4174784) |
|
Immediately | $ 12.62 | ||||
| 14 | 4313137 | Latch, Door (black) |
|
- | |||||
| 14 | 4313653 | Latch, Door (white) |
|
- | |||||
| 15 | 4174992 | Spring, Latch |
|
- | |||||
| 18 | 4313104 | Holder, Fuse |
|
- | |||||
| 20 | 4313161 | Door, Complete (black) |
|
- | |||||
| 20 | 4313169 | Door, Complete (white) |
|
- |
